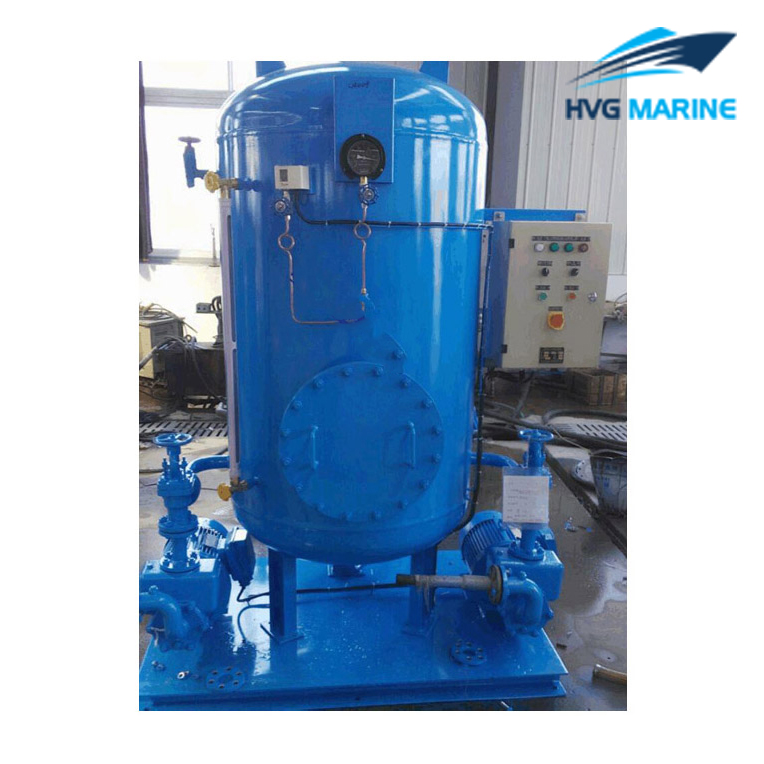

HVG MARINE AUXILIARY MACHINERT 0045: Hydrophore
1. Technical Specification:
- Design pressure: 0.6MPa
- working pressure: 0.5MPa
- working medium:fresh water
- volume:1.0m³
- structural testing: 0.9MPa
- dense experiment: 0.75MPa (There is no leakage)
- Inside and outside superficial stain removal, The internal surface coates non-toxic white drinking water tank primer and finish 2 degree; Outside surface paint Fuxin primer 2 degrees, coating blue enamel paint 2 degrees.
- The standard of the flange:ANSI B 16.5,RF#150;
- SS304 piping&fitting;
- IP44 min

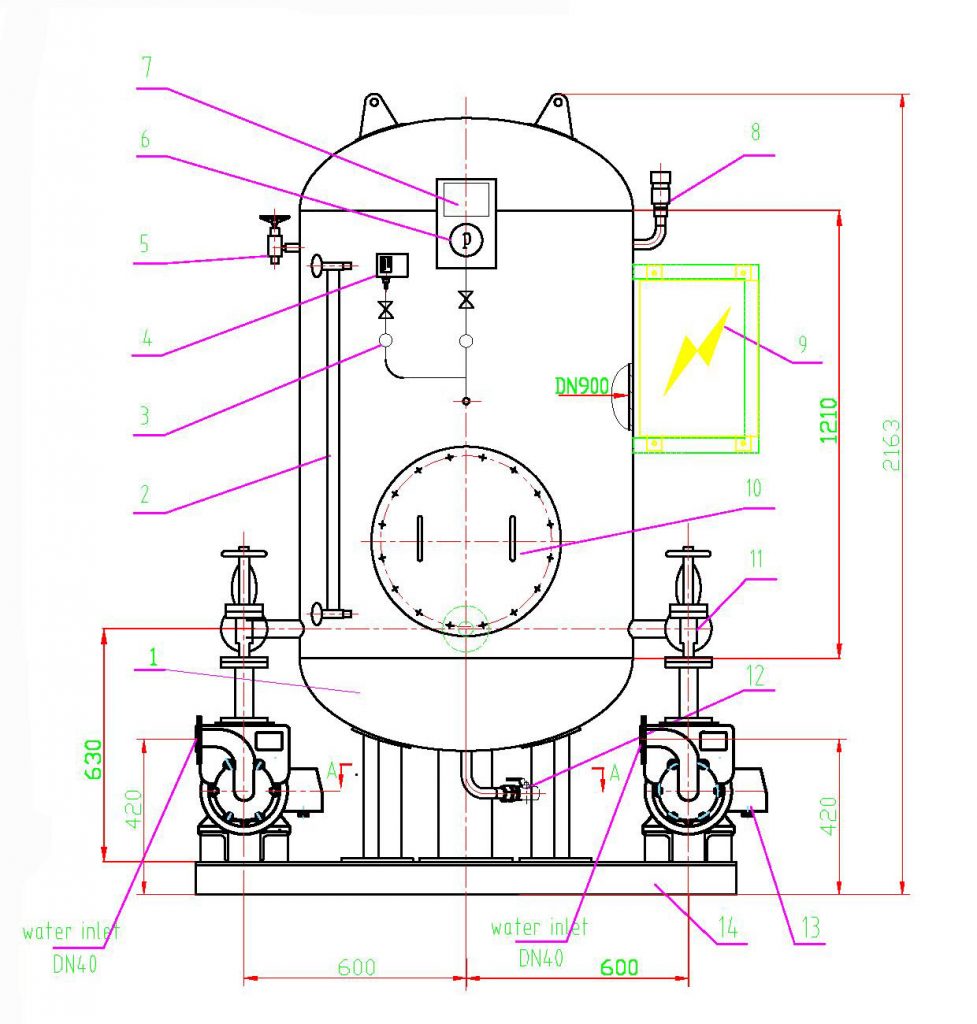

2. General Drawing:
|
No. |
Model |
Spares Description |
Qty. (pc) |
Remarks |
|
1 |
|
Main body δ6 |
1 |
Q235B |
|
2 |
ULG-940H/A |
Liquidometer |
1 |
Assembly |
|
3 |
|
nstrument valve |
2 |
Assembly |
|
4 |
KP35 |
Pressure controller |
1 |
Assembly |
|
5 |
B40010 GB596 |
Stop-check valve |
1 |
copper |
|
6 |
YC-100T |
Pressure gauge |
1 |
Assembly |
|
7 |
|
Nameplate |
1 |
stainless steel |
|
8 |
A21F-16P |
Safety valve |
1 |
Assembly |
|
9 |
|
Electric control box |
1 |
Assembly |
|
10 |
DN400 |
Manhole cover |
1 |
Assembly |
|
11 |
B16040 GB591-93 |
Stop-check valve |
2 |
Assembly |
|
12 |
DN20 |
Ball valve |
1 |
stainless steel |
|
13 |
1.5CWX-3G |
Water pump |
2 |
cast iron |
|
14 |
|
Base |
1 |
Q235A |
