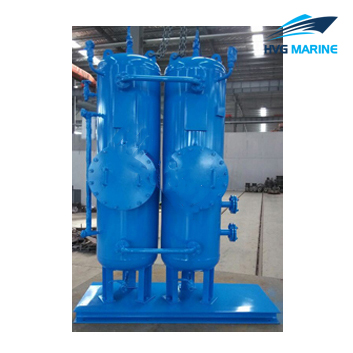

HVG MARINE AUXILIARY MACHINERT 0044: Customized Stainless Steel Sea-water Hydrophore
1. Technical Requirements:
- Design pressure: 0.6MPa
- Working pressure: 0.66MPa
- Test Pressure of Sealing: 0.99MPa
- Test Pressure of Strength: 0.825MPa
- Various appendices physical location scene decides
- Material of main parts: Stainlness

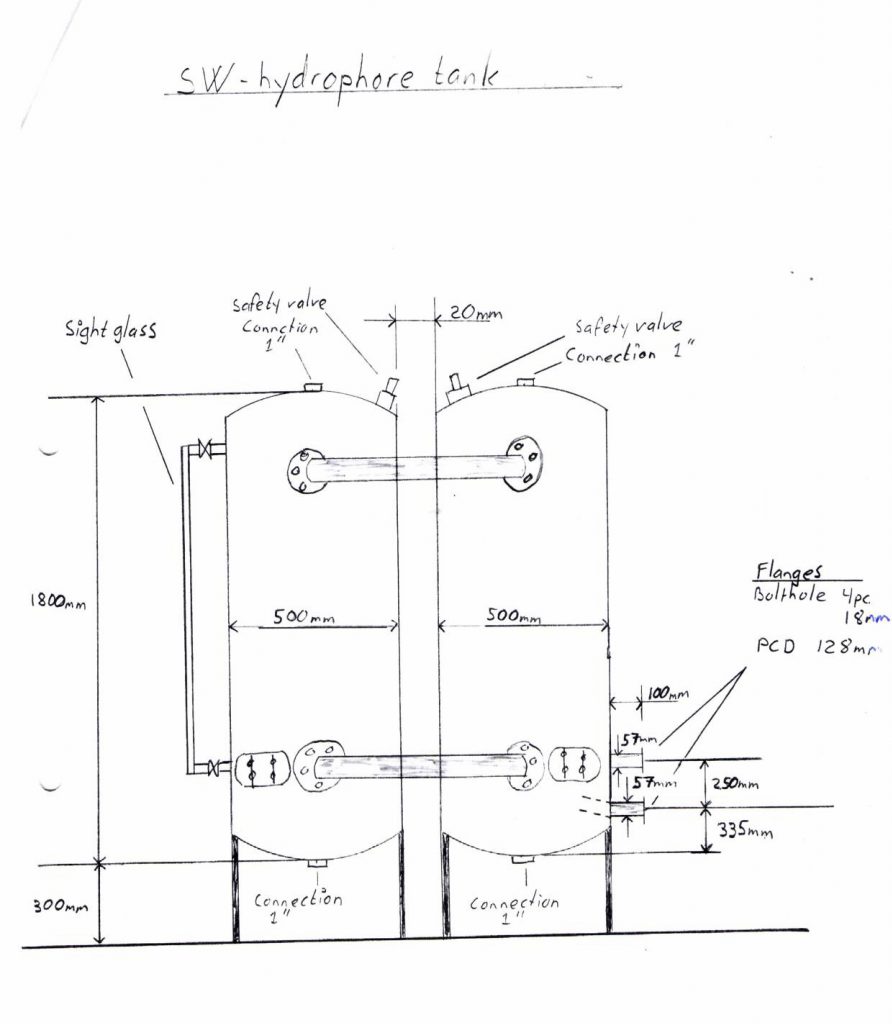

2. Customer’s sketch:

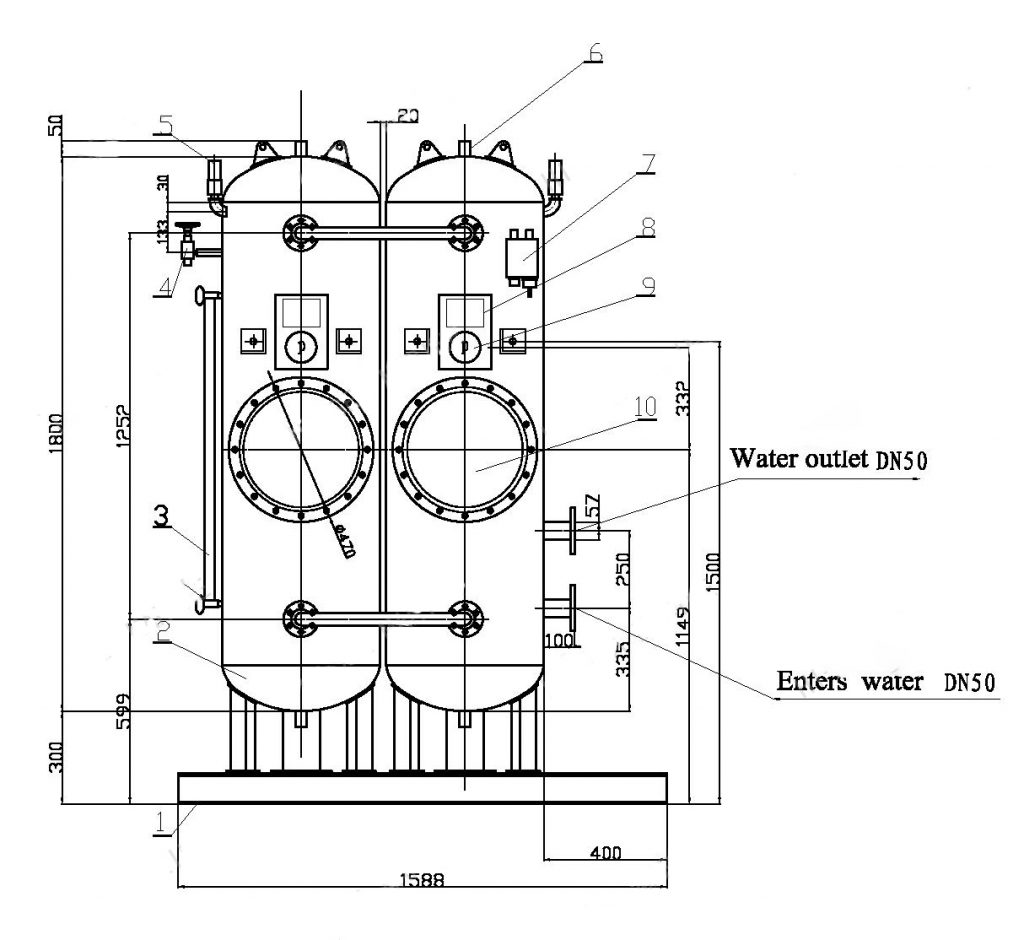

3. Confirmed general drawing:
|
No. |
Model |
Description |
Qty. (pc) |
Remarks |
|
1 |
|
Public base |
2 |
Assembly |
|
2 |
|
Body |
1 |
Assembly |
|
3 |
ULG-1000H |
Liquidometer |
1 |
Copper |
|
4 |
B40010 GB596 |
Stop inverted valve |
1 |
Assembly |
|
5 |
A27H-10 |
Safety valve |
4 |
Q235A |
|
6 |
|
1′ Screw seat |
2 |
Assembly |
|
7 |
YPK-03-C-01 |
Pressure controller |
1 |
Assembly |
|
8 |
|
Data plate |
1 |
Assembly |
|
9 |
YC-100T |
pressure gage |
2 |
Assembly |
|
10 |
DN375 |
Manhole lid |
1 |
Assembly |
