HVG MARINE AUXILIARY MACHINERT 0018

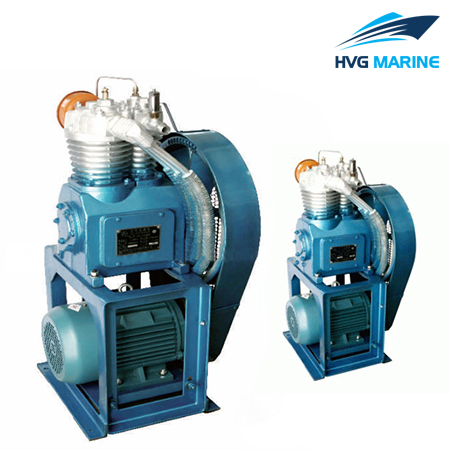

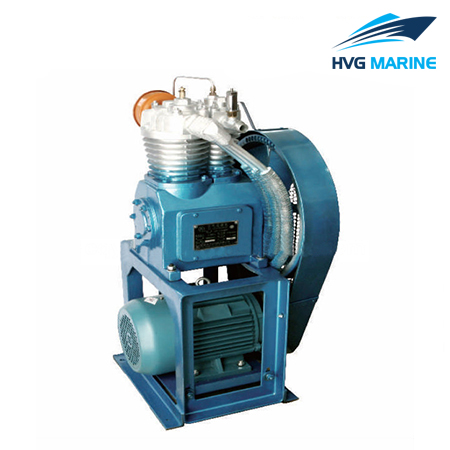

HVG MARINE AUXILIARY MACHINERT 0018: Marine Vertical Medium Pressure Air-cooled Air Compressor

Marine Vertical Medium Pressure Air-cooled Air Compressor is especially suitable for starting the main engine of ships and supplying vessels and ships with the medium pressure air source.The displacement capacity is 0.34 m3/min(20.4 m3/h).The specified discharge pressure is 3.0 MPa.The type of this marine air compressor is double-row,vertical,air-cooled and 2 stage compression piston type.

HVG offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Wonderful service and is available.

Product Features:

Small size,light weight,high efficiency,low noise and smooth operation
Especially suitable for supplying ships with the medium pressure air source and starting the main engine of ships

These functions as follow are available according to clients’ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Technical specification:

Specification:

Model	Displacement capacity		Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
Model	m3/h	m3/ min	MPa	r/min	kW	HP	mm	kg
2ZF-0.34/30-B	20.4	0.34	3.0	600	5.5	7.5	586×520×1020	185
