HVG MARINE AUXILIARY MACHINERT 0017

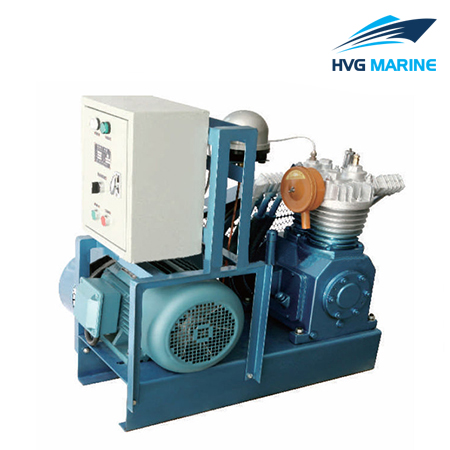

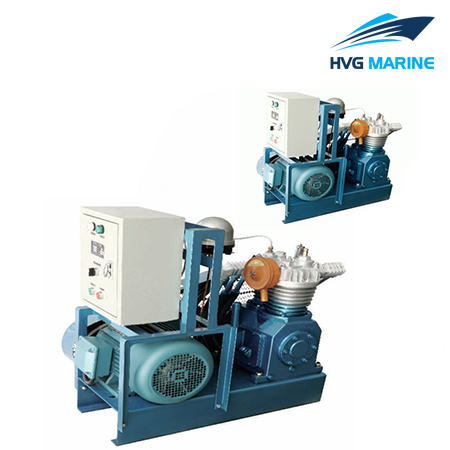

HVG MARINE AUXILIARY MACHINERT 0017: Marine Horizontal Medium Pressure Air-cooled Air Compressor

This marine medium pressure air-cooled air compressor is horizontal type. It is mainly used for starting the main engine of the ships and various medium-sized diesel engine.It has features of smooth operation,low noise and high efficiency.

The type of this marine air compressor is double-row,air-cooled and 2 stage compression piston type.The displacement capacity is 0.34 m3/min(20.4 m3/h).The specified discharge pressure is 3.0 MPa. HVG offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Wonderful service and is available.

Product features:

Smooth operation,high efficiency and low noise
Especially suitable for starting the main engine of ships and various medium-sized diesel engine

These functions as follow are available according to clients’ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Technical specification:

Specification:

Specification:

Model	Displacement capacity		Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
Model	m3/h	m3/ min	MPa	r/min	kW	HP	mm	kg
HVG MARINE AUXILIARY MACHINERT 0017	20.4	0.34	3.0	600	5.5	7.5	940×500×850	210
