HVG MARINE AUXILIARY MACHINERT 0005: Marine Vertical High Pressure Series Water-cooled Air Compressor

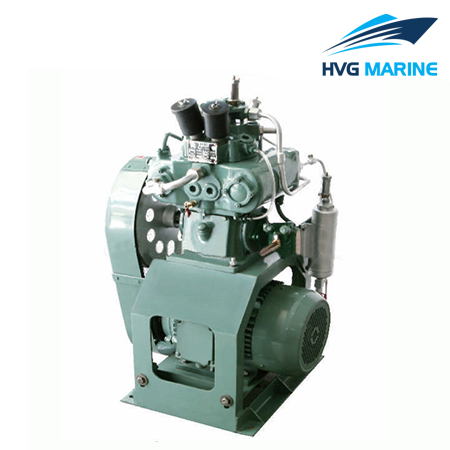

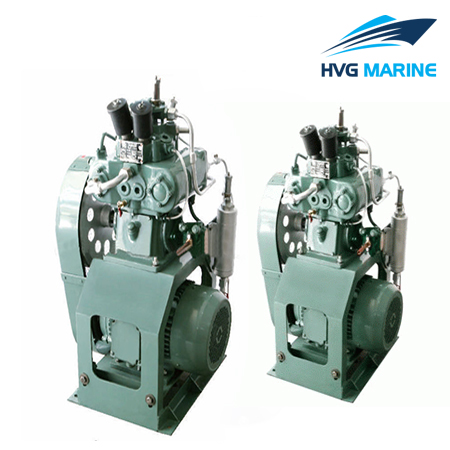

Marine vertical high pressure water-cooled air compressor is specially fit for ships. Its type is single-row, vertical, water-cooled, three-stage differential piston and belt drive type. It has characteristics of a compact structure, small size, light weight, high pressure and easy operation,etc.It can be converted into a automatic control unit form according to the requirements of customers. The displacement capacity of this marine air compressor is 0.27~0.43m3/min. The rated pressure is 5.9~14.7MPa.

HVG MARINE high-tech manufacture and excellent service will help minimize customers’ operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection. Please feel free to contact us directly if you are interested in our products.

Characteristics:

Compact structure,small size
High pressure,light weight,easy operation,etc

Technical specification:

Main Technical Parameters:

Model	Displacement Capacity	Specified Pressure	Rotating Speed	Motor Power		Dimension(L×W×H）	Weight
Model	m3/ min	MPa	r/min	kW	HP	mm	kg
1-0.27/150	0.27	14.7	1000	7.5	10	555×585×940	210
CZ-0.42/150	0.42	14.7	1500	11	15	620×650×1000	270
CZ-0.43/60	0.43	6.0	1500	11	15	620×650×1000	270
