HVG MARINE AUXILIARY MACHINERT 0003: Marine High Pressure Series Water-cooled Air Compressor

Marine high pressure water-cooled air compressor has characteristics of a compact structure,small size and volume,light weight,high pressure and easy operation,etc.The marine high pressure water-cooled air compressor can be converted into a automatic control unit form according to the requirements of customers.

Marine high pressure water-cooled air compressor is specially used for ships.The displacement capacity of this marine air compressor is 0.27~0.43 m3/min.The rated pressure is 5.9~19.6 MPa.Its type is single-row,water-cooled,three-stage differential piston type.There are belt drive or elastic coupling direct connection transmission type.
HVG MARINE high-tech manufacture and excellent service will help minimize customers’ operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

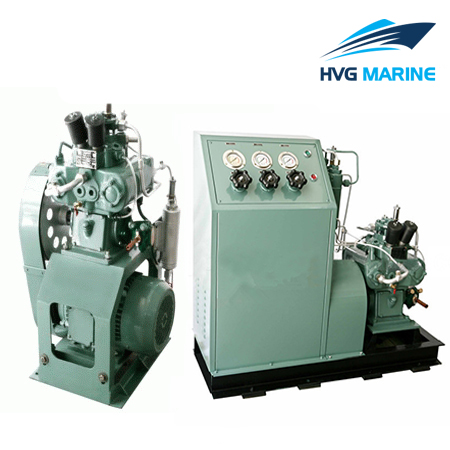

Various marine high pressure water-cooled air compressor as follows are available:

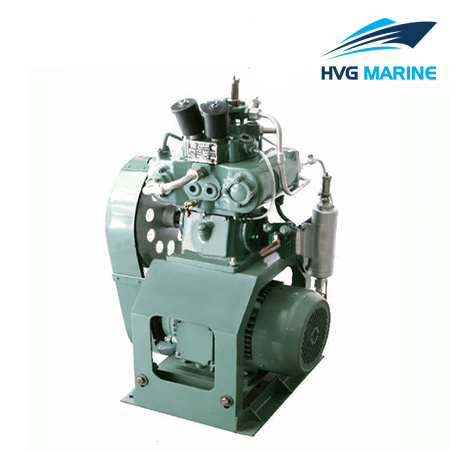

Marine Vertical High Pressure Water-cooled Air Compressor

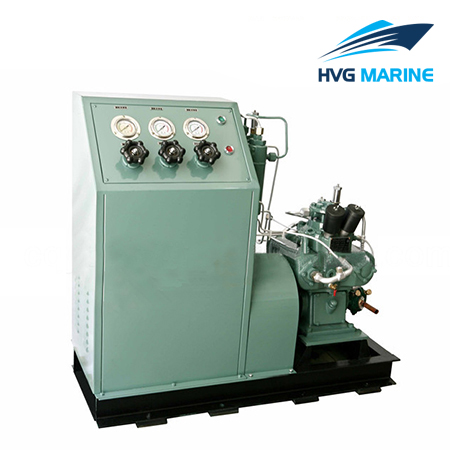

Marine Horizontal High Pressure Water-cooled Air Compressor

Product Characteristics:

High pressure
Compact structure
Small volume and size
Light weight,easy to operate,etc

Technical specification:

Main Technical Parameters:

Model	Displacement Capacity	Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
Model	m3/ min	MPa	r/min	kW	HP	mm	kg
1-0.27/150(Horizontal)	0.27	14.7	970	7.5	10	1100×500×950	300
1-0.27/150(Vertical)	0.27	14.7	1000	7.5	10	555×585×940	210
CZ-0.42/150(Horizontal)	0.42	14.7	1460	11	15	1100×500×950	330
CZ-0.42/150(Vertical)	0.42	14.7	1500	11	15	620×650×1000	270
CZ-0.43/60(Horizontal)	0.43	6.0	1460	11	15	1100×500×950	330
CZ-0.43/60(Vertical)	0.43	6.0	1500	11	15	620×650×1000	270
CZ-0.41/200(Horizontal)	0.41	19.6	1460	11	15	1100×520×950	350
