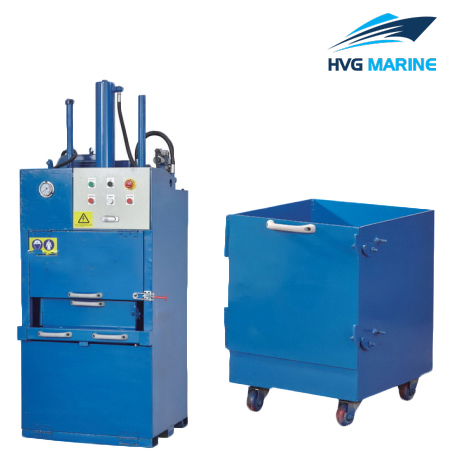

    HVG KITCHEN EQUIPMENT 0089: Marine Waste Compactor

    Marine waste compactor is a sort of environmental-friendly equipment. It is used to dispose kitchen garbage and household refuse. The marine waste compactor is employed with hydraulic drive, high-performance sealing, independent power structure and electric system. It is a good assistant for you to settle garbage. You can choose the suitable one according to your requirements. If you are interested in the product, please contact us.

    Features

    • The man body is made of stainless steel or carbon steel
    • The compressing chamber is an independent and-pushed trolley, easy for replacement and garbage sorting
    • Garbage compacting and baling functions are both available
    • Easy installation and operation
    • The power is cut off upon opening the door in order to ensure safety
    • Germany imported motor, french imported electrical system
    • Different voltage and specification are available

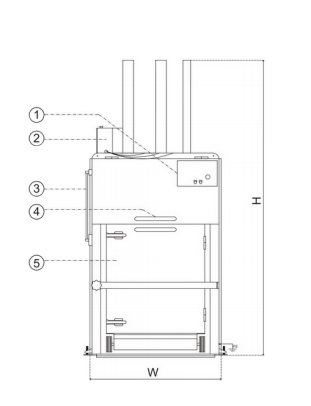

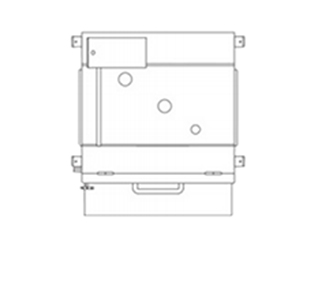

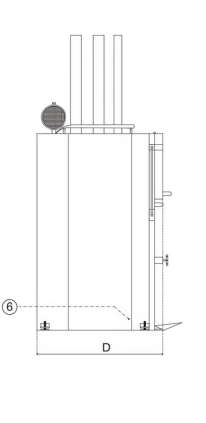

    Drawings

    • ①Control Box
    • ②Motor
    • ③Hydraulic Rod
    • ④Handle
    • ⑤Wheeled Stainless Steel Trolley
    • ⑥Earthing screw

    Technical specification:

    • Specifications

    Model

    Capacity

    Pressure

    Rating

    Voltage

    Size(W×D×H)

    Net Weight

    HSB-125

    125L

    8T

    2.2kW

    380-415V/3/50Hz

    700×650×1800mm

    450kg

    440-480V/3/60Hz

    HSB-500

    500L

    8T

    2.2kW

    380-415V/3/50Hz

    1200×1150×1800mm

    600kg

    440-480V/3/60Hz

    HSB-1000

    1000L

    15T

    4kW

    380-415V/3/50Hz

    1200×1150×2300mm

    680kg

    440-480V/3/60Hz
