HVG KITCHEN EQUIPMENT 0088

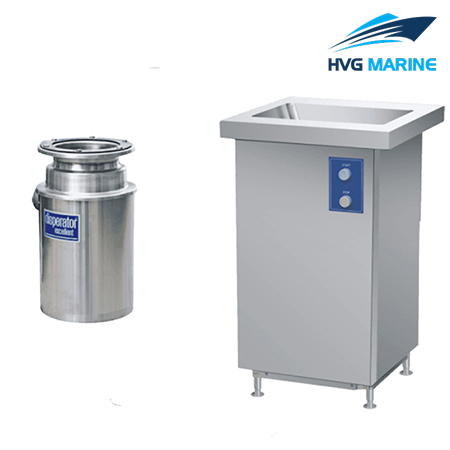

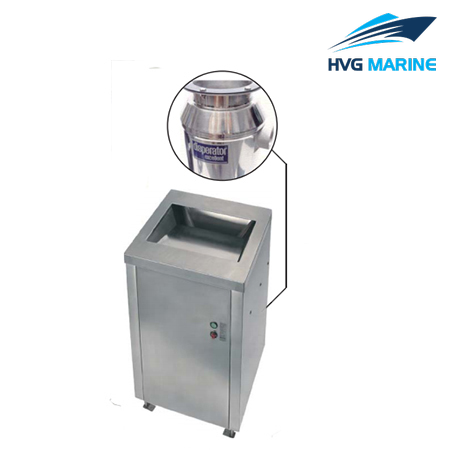

HVG KITCHEN EQUIPMENT 0088: Marine Kitchen Waste Disposal

Marine kitchen waste disposal is a kind of kitchen equipment which is particularly designed and manufactured for ships. This waste disposal should be installed under the kitchen water tank and connected with the outlet. When garbage is poured into this equipment, it will be smashed immediately and removed by water. The marine kitchen waste disposal is made of stainless steel which is anti-rust. It is controlled by the air switch. When current overload occurs, the air switch will automatically disconnect. This kitchen waste disposal is suitable for various sizes vessels. If you are interested in this product, please contact us.

Features

Complete stainless steel execution
Easy to operate and drain, wet disposing
MARPOL72/78 Annex V certified
With control box
S/s enclosure is optional

Technical specification:

Specifications

Model	Capacity	Rating	Voltage	Size	Net Weight
HSB-50S	150kg/h	0.5kW	220V/1/50Hz	ø206×250×360mm	8kg
			230V/1/60Hz
HSB-100S	300kg/h	0.75kW	220V/1/50Hz	ø248×366×430mm	10kg
			230V/1/60Hz
HSB-150S	400kg/h	1.2kW	220-230V/1/50-60Hz	ø360×470mm	15kg
			380-480v/3/50-60Hz
HSB-200S	500kg/h	1.5kW	220-230V/1/50-60Hz	ø360×470mm	20kg
			380-480v/3/50-60Hz
HSB-300S	700kg/h	2.25kW	220-230V/1/50-60Hz	ø450×600mm	25kg
			380-480v/3/50-60Hz
HSB-510S	300kg/h	0.75kW	220-230V/1/50-60Hz	ø253×425mm	26kg
			380-480v/3/50-60Hz
HSI510	300kg/h	0.75kW	220/400/440V/3P/50/60Hz
HSI515	400kg/h	1.1kW	220/400/440V/3P/50/60Hz
HSI520	500kg/h	1.5kW	220/400/440V/3P/50/60Hz
HSI530	700kg/h	2.2kW	220/400/440V/3P/50/60Hz
HSI550	850kg/h	4.0kW	220/400/440V/3P/50/60Hz
HSI570	1000kg/h	5.5kW	220/400/440V/3P/50/60Hz
