HVG FIRE FIGHTING EQUIPMENT 0399

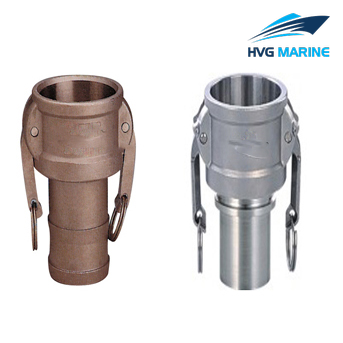

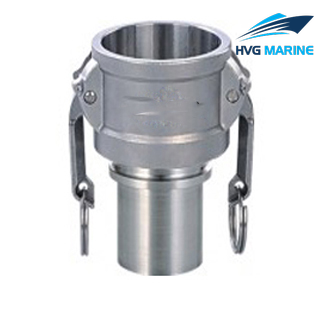

HVG FIRE FIGHTING EQUIPMENT 0399: Camlock coupling C type

Type ‘C’, has a female camlock end and a male hose tail on the other. Camlock coupling C type consists of two components – coupler and adapter. Insert the adaptor into the coupler and when the adaptor contact with the sealing gaskets, put down the arms. The whole sealing process is quite easy and that could potentially save you a lot of time.

Product detail:

Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2′ 3/4′ 1′ 1-1/4′ 1-1/2′ 2′ 2-1/2′ 3′ 4′ 5′ 6′
Standard: AA59326, JIS, DIN2828
Casting Method: Gravity casting
Surface Treatment: sand blast
Threads: BSP, NPT DIN

Technical specification:

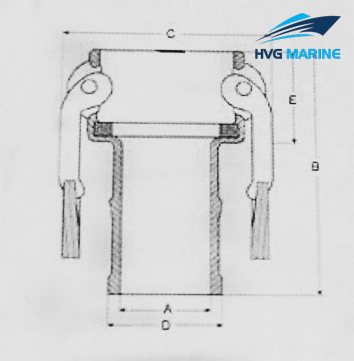

Camlock coupling C type index

Size	DIM	A	B	D	E	G
Size	inch	mm	mm	mm	mm	mm
15	1/2	14	92	20	32	53
20	3/4	114	92	20	32	54
25	1	20	105	26	40	61
32	1 1/4	25	118	33	48	79
40	1 1/2	31	121	39	49	83
50	2	43	138	52	54	94
65	2 1/2	55	155	54	59	109
80	3	67	164	77	60	130
100	4	92	175	103	62	158
125	5	115	187	130	62	184
150	6	140	214	155	72	219
