HVG FIRE FIGHTING EQUIPMENT 0398

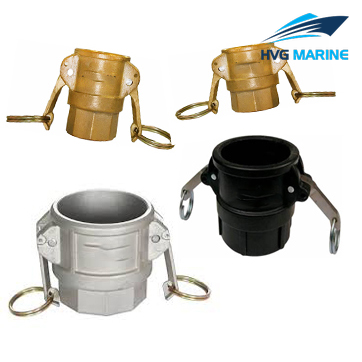

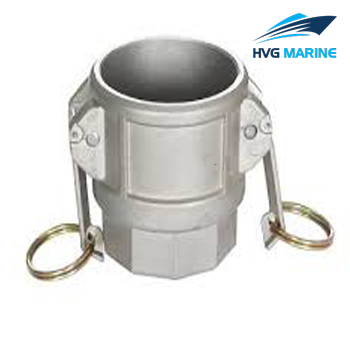

HVG FIRE FIGHTING EQUIPMENT 0398: Camlock coupling D type

Type ‘D’, has a female camlock end and a female pipe thread of the same size. Camlock coupling D type is quick connect, fluid transfer hose fittings that can be used across many applications, including water, petroleum and chemicals.

Product detail:

Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2′ 3/4′ 1′ 1-1/4′ 1-1/2′ 2′ 2-1/2′ 3′ 4′ 5′ 6′
Technics: Casting
Casting method: Gravity casting
Standard: AA59326, JIS, DIN2828
Surface treatment: sand blast
Connection: grooved
Head Code: round

Technical specification:

Camlock coupling D type index

Size	DIM	A	B	E	G
Size	inch	mm	mm	mm	mm
15	1/2	16	52	32	53
20	3/4	19	52	32	54
25	1	24	64	40	61
32	1 1/4	28	72	48	79
40	1 1/2	35	73	49	83
50	2	48	80	54	94
65	2 1/2	58	90	59	109
80	3	72	94	60	130
100	4	98	101	62	158
125	5	122	102	62	184
150	6	145	118	72	219
