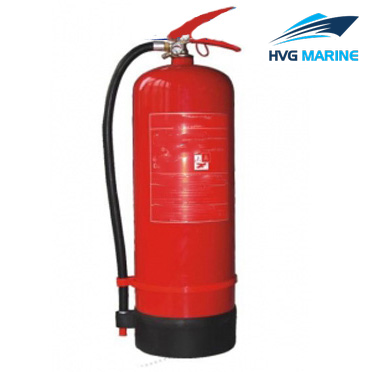

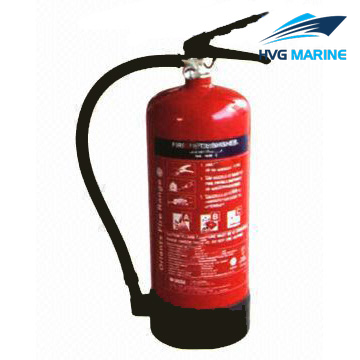

    HVG FIRE FIGHTING EQUIPMENT 0297: AFFF 3% foam fire extinguisher

    Aqueous film-forming foam (AFFF), this synthetic foam has a low viscosity and spreads rapidly across the surface of most hydrocarbon fuels. A water film forms beneath the foam, which cools the liquid fuel, which stops the formation of flammable vapors. This provides dramatic fire knockdown, an important factor in crash rescue fire fighting. To 2010, the foam has achieved a 97% degradability rating; the foam is used at 3% both on hydrocarbon and polar solvent fires.

    Product detail:

    • Material: carbon steel /Stainless Steel
    • Extinguisher Color: red or as clients require
    • Approval: CE and ISO9001
    • Temperature Range : 0°C~60°C
    • Test Pressure (bar): 27
    • Agent: 3% afff foam
    • Service: OEM/ ODM

    Technical specification:

    • AFFF 3% foam fire extinguisher parameter
    Capacity 4L 6L 9L
    Out-Dia.(mm) 140 160 180
    Volume (L) 5.4 7.8 10.5
    Cylinder-length (mm) 410 450 485
    Cylinder Weight (kg) 2.1 2.95 3.6
    Extinguisher Weight (kg) 6.7 9.5 14
    Filling Weight (L) 4 6 9
    Working Pressure (bar) 14 14 14
    Min Wall-thickness 1.13 1.23 1.3
    Fire Rate: 13A 89B 27A 144B 34A 183B
    Packing Size (mm) 150x160x440 170x180x510 190x200x600
    Qty. / ctn (pcs) 1 1 1
    Qty. / 1×20’ft (pcs) 2600 1800 1200
