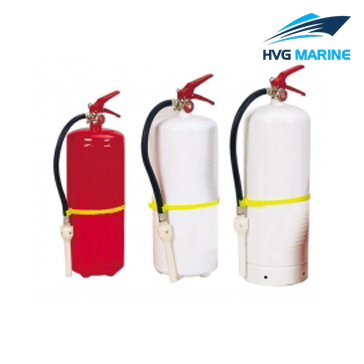

HVG FIRE FIGHTING EQUIPMENT 0296: Portable AFFF Foam Fire Extinguisher

AFFF (Aqueous Film Forming Foam), used on A and B fires and for vapor suppression. AFFF Foam Fire Extinguisher is the most common type in portable foam extinguishers. AFFF Foam is foam used for fire suppression. Its role is to cool the fire and to coat the fuel, preventing its contact with oxygen, resulting in suppression of the combustion.

This synthetic foam has a low viscosity and spreads rapidly across the surface of most hydrocarbon fuels. A water film forms beneath the foam, which cools the liquid fuel, which stops the formation of flammable vapors. This provides dramatic fire knockdown, an important factor in crash rescue fire fighting.

Product detail:

Name: AFFF Foam Fire extinguisher
Color: Red or the color you want
Working pressure: 14bar
Material: ST12
Extinguishing agent: AFFF foam
Valve: Brass
Inner Painting: anti-water
Usage: Fire extinguisher equipment

Technical specification:

Portable AFFF Foam Fire Extinguisher parameter

Type	2L	6L	9L
Cylinder length(mm)	310	470	525
Cylinder weight(Kg)	4.7	3.3	4.6
Extinguisher weight(Kg)	6	10	14
Filler weight	2	6	9
Test Pressure (Bar)	27	27	27
Min wall- thickness(mm)	1.08	1.24	1.3
Discharge time(s)	>35	>35	>35
Discharge Range(m)	6~8	6~8	6~8
Operating temperature(ºC)	0~60	0~60	0~60
