HVG FIRE FIGHTING EQUIPMENT 0255

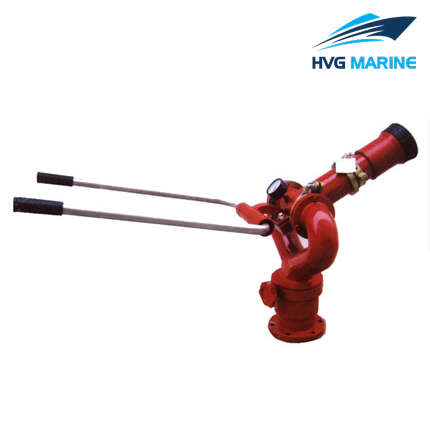

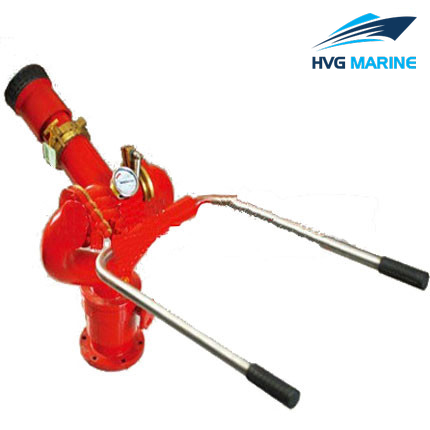

HVG FIRE FIGHTING EQUIPMENT 0255: Fire Fighting Monitor

Fire monitor is mainly divided into fire water monitor and fire foam monitor. It is used as fire extinguisher to put out the long distance fires caused by solid substances or liquids. Fire monitor is full-featured and has excellent extinguishing effect. It has large pressure range and long jetting distance. It supports spraying DC, 90°flowering and mist jetting. Fire monitors with its light weight, small size,multi-functions are the best choice of firefighters,marine ships, petrochemical industries, storage tank areas, hangars, warehouses, ports and other places. If you’re interested in our fire monitors, please feel free to contact us.

Technical specification:

Product Specification:
Technical Parameters of Water Monitors:
Technical Parameters of Foam Monitors:

Model Type: PS series & PP series
Flow Rate: 20~100L/S
Working Pressure: 0.8~1.2MPa
Horizontal Rotation Angle: 0~360°
Pitch Rotation Angle: -70°~+90°
Certificate: CCS,EC etc.

Model	PS20-50				PS60-100
Working Pressure (MPa)	0.8-1.0				0.9-1.2
Flow Rate(L/S)	20	30	40	50	60	70	80	100
Jetting Range(m)	≥48	≥55	≥60	≥65	≥70	≥75	≥80	≥85
Rotation Angle	360°				360°
Elevation Angle	-70°~ +90°				-70°~ +90°
Inlet Flange	80				100

Model	Flow Rate(L/s)	Expansion Ratio	25% Suction Time(min)	Working Pressure(MPa)	Weight(kg)	Inlet Flange	Jetting Range(m)
PP24	24	≥6	≥2.5	0.8-1.0	≤35	DN80	≥40
PP32	32	≥6	≥2.5	0.8-1.0	≤35	DN80	≥45
PP40	40	≥6	≥2.5	0.8-1.0	≤35	DN80	≥50
PP48	48	≥6	≥2.5	0.8-1.0	≤35	DN80	≥55
PP64	64	≥6	≥2.5	0.8-1.0	≤35	DN80	≥60
PP80	80	≥6	≥2.5	1.0-1.2	≤45	DN100	≥65
PP100	100	≥6	≥2.5	1.0-1.2	≤60	DN100	≥75
