HVG FIRE FIGHTING EQUIPMENT 0246

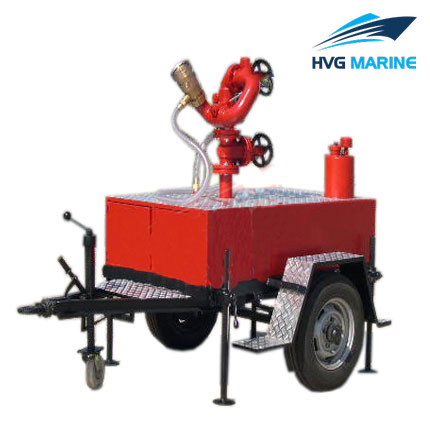

HVG FIRE FIGHTING EQUIPMENT 0246: Trolley Mounted Fire Monitor

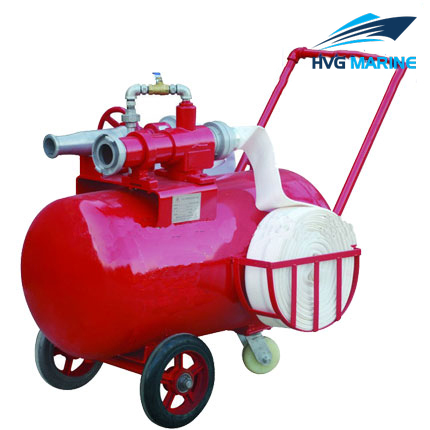

Trolley mounted foam monitor consists of the foam gun, foam proportioner, fire hose, foam concentrate storage tank, foam monitor/nozzle and the trolley. The monitors are mounted on the trolley with four wheels making it flexible, easy to move and operate. Therefore, it has been widely used in petrochemical industries, storage tank areas,hangars, warehouses, ports etc. If you’re interested in our fire monitors, please do not hesitate to contact us.

Product Specification:

Model Type: Trolley Mounted Foam Monitor
Flow Rate: 4L/S,8L/S,16L/S
Working Pressure: 5~12bar
Capacity: 30L ~500L
Proportioning Ratio:3% or 6%
Certificate: EC etc.

Technical specification:

Technical Parameters:

Model	Rated Flow Q(L/S)	Working Pressure(MPa)	Cylinder Volume(L)	Mixture Ratio(%)	Matched Foam Gun Model	Matched Hose Specification DN(mm)
HS4/100	4	0.6~0.8	100	3/6	HQ4	50
HS4/200			200
HS8/300	8		300		HQ8	65
HS8/500			500
HS16/500
