HVG FIRE FIGHTING EQUIPMENT 0239

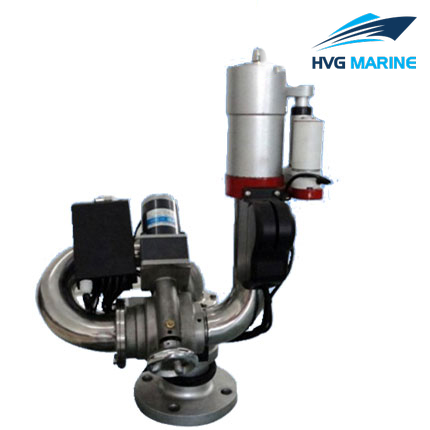

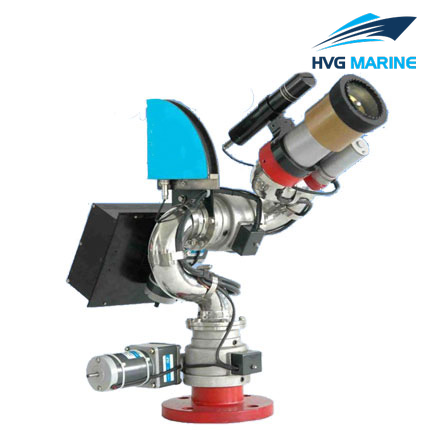

HVG FIRE FIGHTING EQUIPMENT 0239: Remote Controlled Fire Fighting Monitor

Remote control fire fighting monitor is electrical driven fire monitor which is made according to the standard of the international code for fire safety system. It is important fire extinguishing equipment and used for the fire truck,air plant, exhibition area etc. It helps extinguish the distant fire with the remote control of the users. Remote control fire monitor has stable performance and excellent quality. If you’re interested in our fire monitor, please do not hesitate to contact us.

Technical specification:

Product Specification:
Technical Parameters:

Model Type: Remote controlled fire monitor
Flow Rate: 20~200L/S
Working Pressure: 0.8~1.4MPa
Jetting Range: 53~105m
Max mist spray angle: ≥90°
Min depression angle: ≤-15°
Max elevation angle: ≥+60°
Horizontal revolution angle:≥180°

Flow Rate(L/S)	Rated Working Pressure(MPa)	Jetting Range(MPa)	Flow Allowance
20	0.8	53	±8%
25		57
30		60
40	1.0	67
50	1.0	70
60	1.2	73	±6%
70		77
80		80
100		85
120		90	±5%
150		95	±5%
180	1.4	100	±4%
200	1.4	105	±4%
