HVG FIRE FIGHTING EQUIPMENT 0238

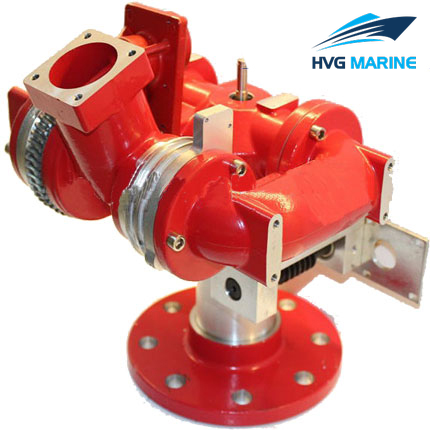

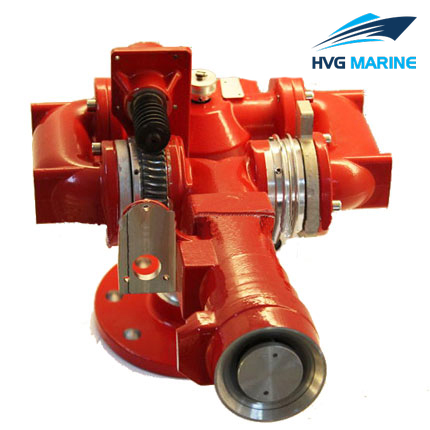

HVG FIRE FIGHTING EQUIPMENT 0238: Automatic Fire Fighting Monitor

Automatic fire fighting monitor is small size,light compact and easy to turn. It connects with the infrared detection control system and put out the fire automatically. Its automatic function makes it put out the fire at the initial stage and save people’s life and property to the maximum. Automatic fire fighting monitor also can be fixed and manually controlled. It has high stable performance. If you’re interested in our fire monitors, please do not hesitate to contact us.

Product Specification:

Model Type: Automatic fire fighting monitor
Flow Rate: 5-20L/S
Working Pressure: ≤0.8MPa
Horizontal Rotation: 0-360°
Vertical Rotation:-90~+90°
Material: Aluminum alloy
Weight: ≤15kg
Certificate: EC etc.

Technical specification:

Technical Parameters:

Model	HVG-20	HVG-30	HVG-50
Protection Radius	25m	30m	50m
Shoot Water Flow	5L/S	5L/S	20L/S
Dimensions(LWH)	250250350mm	400380540mm	582320310mm
Weight(kg)	6.2	8	15
Interface Diameter	DN25	DN50	DN50
Mounting Height	6-22m	4-30m	6-30m
Rated Working Pressure	0.6MPa	0.6MPa	0.8MPa
Maximum Working Pressure	1.0MPa	1.0MPa	1.6MPa
Fire Positioning Time	≤30s	≤30s	≤30s
Operation Ambient Temperature	4-55℃	4-55℃	4-55℃
Horizontal Rotation Range	0-360°	0-360°	0-360°
Vertical Swivel Range	0~90°	-10~90°	-90°~+90°
