HVG FIRE FIGHTING EQUIPMENT 0181: PVC Suction Hose

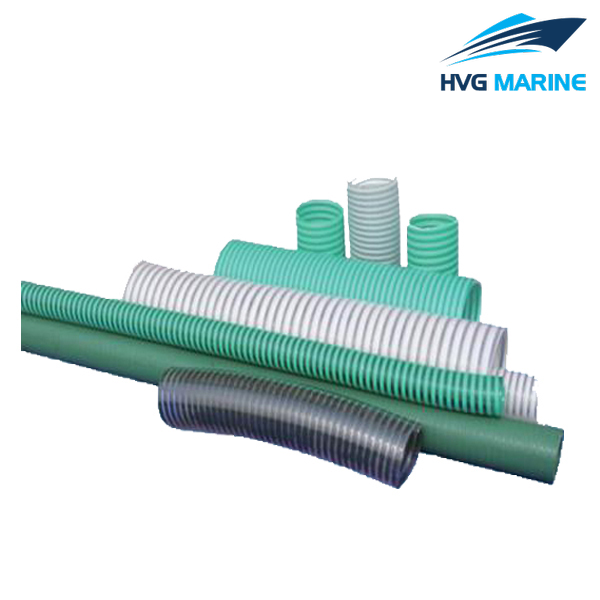

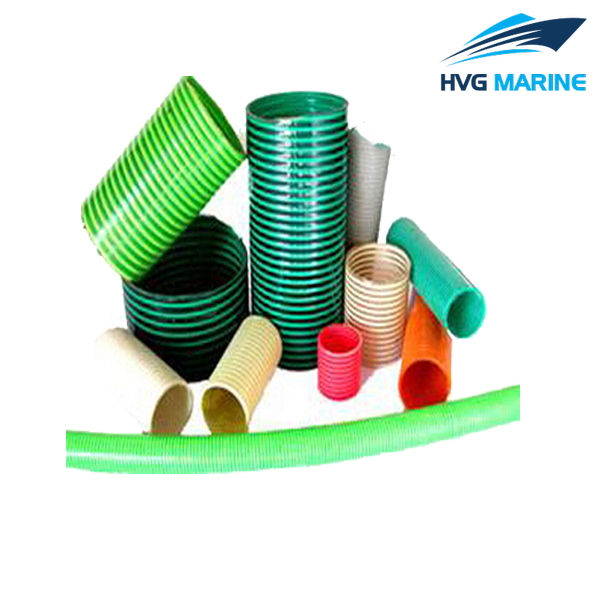

Suction Hose is a specific type of fire hose uesd in drafting operations, when a fire engine uses a vacuum to draw water from a portable water tank, pool, or other static water source. It is built to withstand vacuum, rather than presure, abrasion, and heat. It is widely used for pumping and delivery fluids such as water, oil and poder in agricultue, factory and construction, can fit to PVC pipe by PVC glue.

Product details:

Length: 20m , 30m, 50m
Color:Blue, Green, Red, ect
Temperature range: -5 centigarde degree +65centigarde degree

Characters:

1. Reinforced rigid plastic wire screw inserted into the inner wall of flexible PVC hose.
2. To be light in weight with good resistance to the hard weather conditions and minus pressure, and small bending radius
3.Ideal substitute for rubber hose, cement hose and mental hose in many areas.

Technical specification:

Specifications:

Technical Requirements
I.D. (Inch/mm)		Working Pressure (Bar)	Burst Pressure (Bar)
3/4	19	8	32
1′	25	8	32
1-1/4′	32	8	30
1-1/2′	38	8	26
2′	51	7	24
2-1/2′	64	6	20
3′	76	5	20
4′	102	5	16
5′	127	4	13
6′	152	4	12
8′	203	3	9
