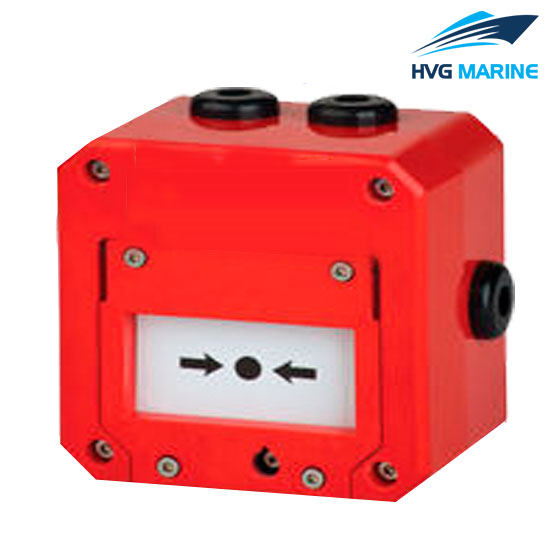

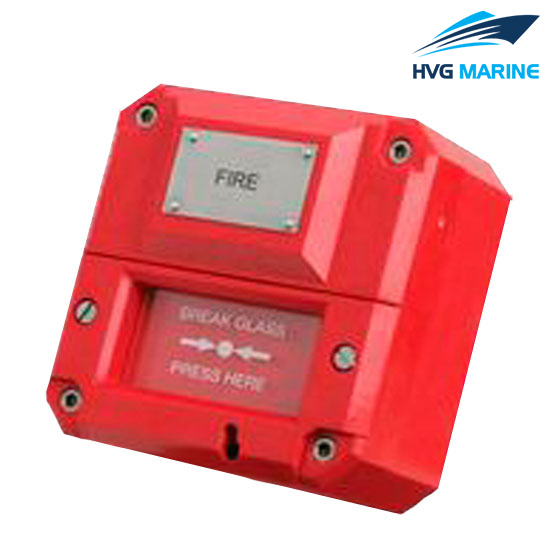

HVG FIRE FIGHTING EQUIPMENT 0008: Marine Explosion-proof Manual Fire Call Point
What Is It?
Marine explosion-proof manual fire call point is designed according to EN6009-0, En6009-1 and EN54 standard. Enclouse material is UV and corrosion resistance GRP. This product is certified for use and installation in Zone1 and Zone 2 areas with gases groups of IIA, IIB plus H2 and temperature classification of T6. It specially applies to Oil & Gas, Offshore Platform, Chemical, Petrochemical, Petrochemical, Refinery and Marine Industries etc.
Working Principle
The manual call point is very conenient to use. No hammer is required. The design of two LED indicators (Green and Red) is unqiue. During normal operation, the Green LED is on.When device fault or alarm status arises, the Green LED will be cut off and The Red one will be on.
Specification
- Operating Temperature Range:-40℃~70℃
- Operating Humidity Range: be small or equal to 95% Noncondensing
- Operating Voltage:Loop24V
- Standby Current:0.8mA
- Alarm Current:2mA
- Dimensions:196mm* 129mm * 95mm
Some of above those parameter can be customized accoring to your personal requirement!
Features
- I. Crrrosion resistant
- II.Suitable for explosion protected applications
- III.Internal or exposed external application
- IV.Stainless steel lift flap
- V.Double pole switch
- VI.LED activation indication
