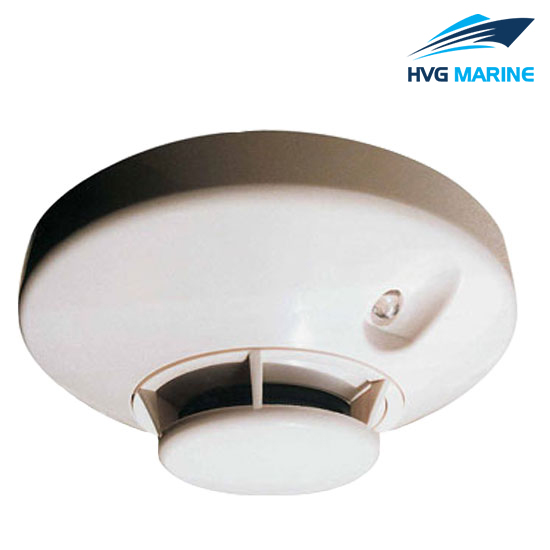

HVG FIRE FIGHTING EQUIPMENT 0006: Marine Addressable Photoelectric Smoke Detector

What Is It?

Marine addressable Photoelectric smoke detector incorporating with unique high performance chamber which allows the sensor threashold level to be increased, thereby improving the signal to noise ratio and reduce susceptibility to false alarms.

Specification

• Diameter:102mm
• Height:50mm
• Weight:106g(with base)
• Operating Temperature Range: -10deg~55deg
• Operating Humidity Range:10%~95%RH,Noncondensing
• Max Air Velocity:10m/s
• Operating Voltage:15~35VDC
• Standby Current: be smaller or equal to 700uA (24VDC)
• Alarm Current(LED on) :be smaller or equal to 3.0mA (24VDC)
