HVG DECORATIVE MATERIAL 0035

HVG DECORATIVE MATERIAL 0035: Continuous Composite Glass Wool Ceiling

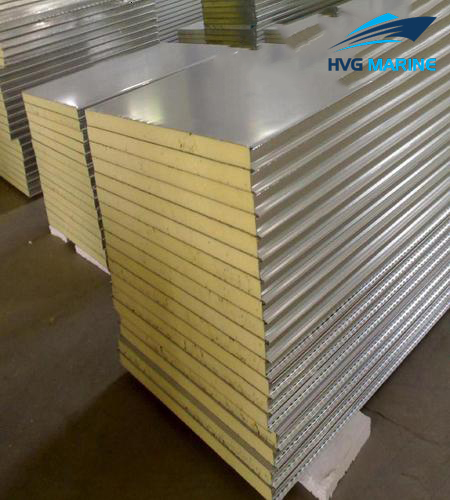

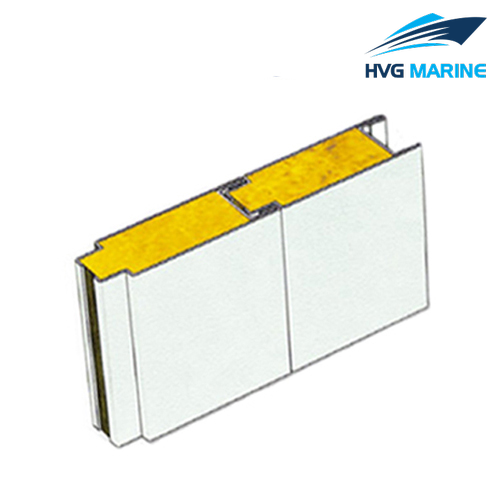

Our company is specialized in exporting marine decorative material. This type A composite glass wool panel is used as marine ceiling board. It is made with steel sheet or PVC/PET on the surface and glass wool in the core. Our glass wool ceiling is fire resistant and the fire protection rating is B-15 or B-0. Certificates like CCS, BV, DNV, GL, KR, and NK can be offered according to customer’s request.

Features:

1. Ship ceiling board
2. Fire proof rating: B-15, B0
3. Surface finish: PVC/PET film laminated or galvanized steel sheet
4. Core material: glass wool
5. Light weight, perfect function
6. Certificates: CCS, BV, DNV, GL, NK, KR, RINA, etc.

Technical specification:

Specifications:

Model	T50A	T30A	T25A
Thickness	50mm	30mm	25mm
Fire endurance rating	B-15	B-0	B-0
Dimension	550/600mm width, required length ( max.3600mm) (customized size available)
Plane material	Galvanized steel sheet with PVC/PET film laminated
Core material	Glass wool	Glass wool	Glass wool
Weight	13.7kg/m²	10.9kg/m²	10.5 kg/m²
Sound reduction	32dB(A)	31dB(A)	30dB(A)
Thermal transmittance	0.49 kcal/m2h・℃	0.92 kcal/m2h・℃	1.01 kcal/m2h・℃
Tolerances	Width(-1, 0), length±3, thickness(-1,0)
