HVG DECORATIVE MATERIAL 0034: Composite Glass Wool Acoustic Wall Panel

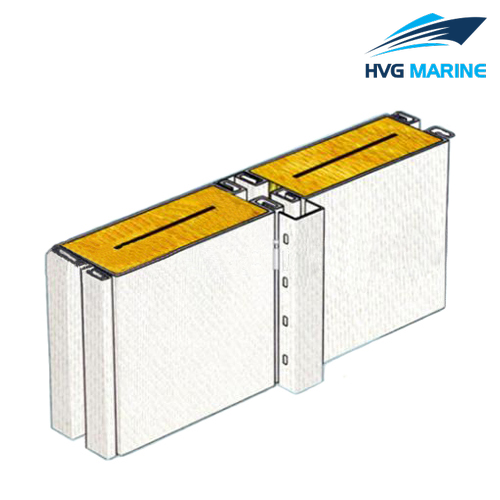

This product is one of marine decorative materials. It is used as the ship wall paneling. The surface of this marine wall panel l is galvanized steel sheet or PVC/PET film laminated, and the core material is glass wool. Our product is manufactured in accordance with the ISO9000 standards. It is approved by ABS, CCS, BV, DNV, EC, GL, KR, NK, etc.

Features:

1. Fireproof class: B15, B0
2. Thickness: 50mm, 30mm, 25mm
3. Normal width: 600/550mm
4. Max. length: 3600mm
5. Light weight and perfect function
6. Customize size available

Technical specification:

Specifications:

Model	B50C	B30C	B25C
Fire resistance rating	B-15	B-0	B-0
Surface material	Galvanized steel sheet with PVC/PET laminated film
Core material	Glass wool	Glass wool	Glass wool
Thickness	50mm	30mm	25mm
Dimension	width 600/550mm, length optional (max. 3600mm)
Weight	15kg/m²	12.9kg/m²	10.3kg/m²
Tolerances	Width: 0-1, length±3, thickness: 0-1
Sound reduction	32dB(A)	31dB(A)	30dB(A)
Thermal transmittance	0.4 9 kcal/m2h・℃	0.92kcal/m2h・℃	1.01kcal/m2h・℃
