HVG DECORATIVE MATERIAL 0015

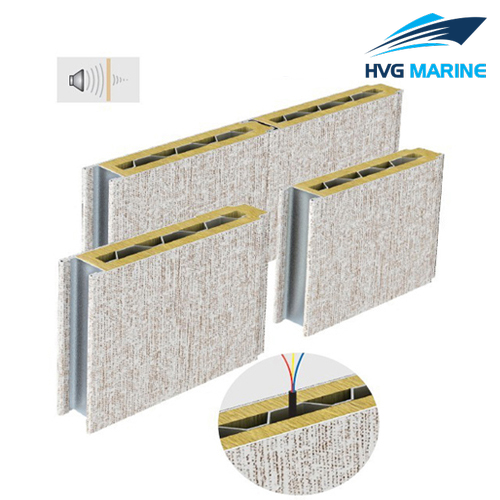

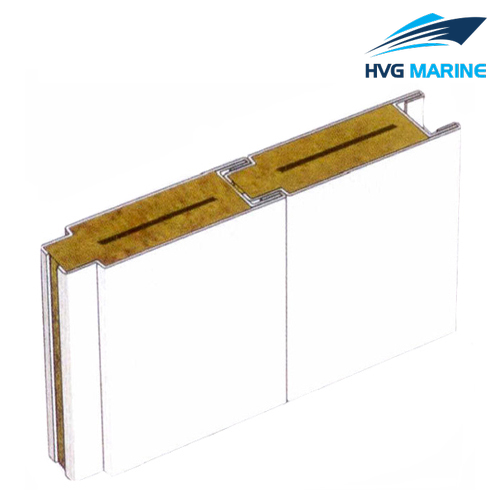

HVG DECORATIVE MATERIAL 0015: Type A Composite Rock Wool Acoustic Wall Panel

As an important marine decorative material, composite rock wool is widely used in the cabin, deck house and bathroom of various vessels for the decoration of wall and ceiling. This product is the type A composite rock wool acoustic wall panel. The surface of it is made of PVC film or galvanized steel sheet and the core is rock wool. Patterns and colors of the PVC film can be decided by clients. This type A wall panel is designed with excellent sound insulation and heat insulation prosperities. Certificates about it are CCS, BV, KR, NK, etc.

Features:

1. Marine composite rock wool acoustic wall panel
2. Model: B50AGa
3. Fire resistant rating: B-15
4. Sound reduction: 46dB(A)
5. Surface finish: PVC film or galvanized steel sheet
6. Core material: composite rock wool
7. Dimension: 50mm( t )×550mm( w )×length (max.3500mm), length is customized
8. Certificates: CCS, DNV, NK, RINA, etc.
9. OEM service available

Technical specification:

Specifications:

Model	B50AGa
Fire protecting rating	B-15
Weight	22.0kg/m²
Sound reduction	46dB(A)
Thermal transmittance	0.58Kcal/m²h·°C
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
Core material	Rock wool 150kg/m³
Thickness	50mm
Width	550mm
Length	Required length (max. 3500mm)
Dimension	50mm( t )×550mm( w )×length (max.3500mm)
Tolerances	thickness(-1, 0), length±3, width(-1, 0)
