HVG DECORATIVE MATERIAL 0012

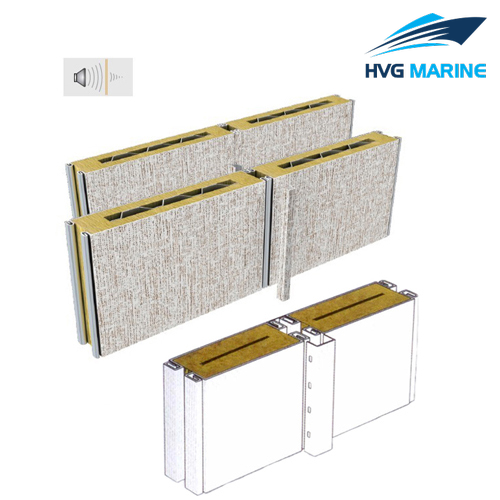

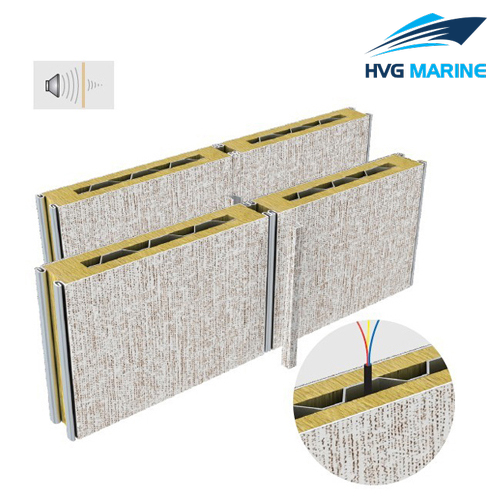

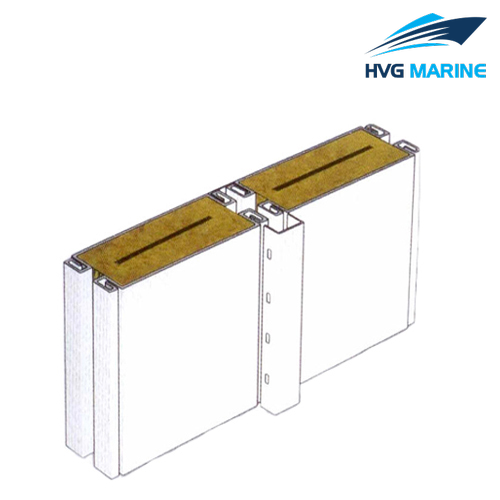

HVG DECORATIVE MATERIAL 0012: Type C Composite Rock Wool Acoustic Wall Panel

This product is the type C composite rock wool ship wall panel. It is designed with high sound reduction property, so it is called marine acoustic wall pane. The product is made of PVC film or galvanized steel sheet on the surface and rock wool in the core. It is fire insulating and the fire protecting rating of it is B-15. Therefore, it is frequently used in the cabin, meeting rooms, and movie rooms of various vessels. This type acoustic wall panel is approved by certificates CCS, ABS, BV, NK, etc. We can offer the specific certificate according clients’ requirement.

Features:

1. Marine composite rock wool acoustic wall panel
2. Fire protecting rating: B-15
3. Model: B50CGa
4. Sound reduction: 45dB
5. Thickness: 50mm
6. Normal width: 550mm
7. Required length (max. 3500mm)
8. Certificates: ABS, BV, KR, CCS, etc.

Technical specification:

Specifications:

Model	B50CGa
Fire protecting rating	B-15
Core material	Rock wool 150kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
Weight	22.3kg/m²
Sound reduction	45dB
Tolerances	Thickness(0, -1), Width(0, -1), Length±3
Thermal transmittance	0.55Kcal/m²h·°C
Dimension	50mm( t )×550mm( w )×length (max.3500mm)
