HVG CONTAINER-SECURING FITTING 0060

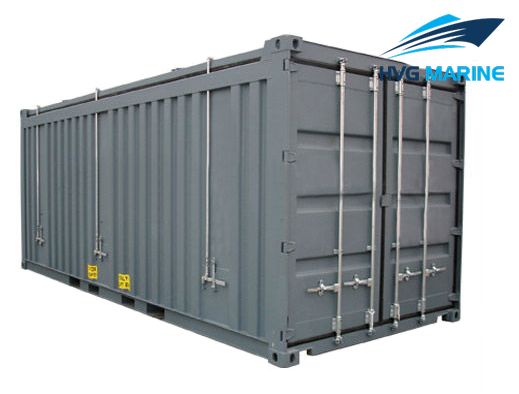

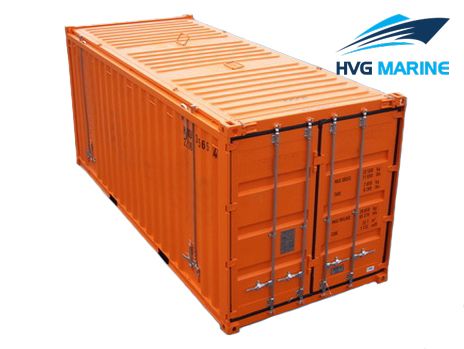

HVG CONTAINER-SECURING FITTING 0060: Hard Open Top Container

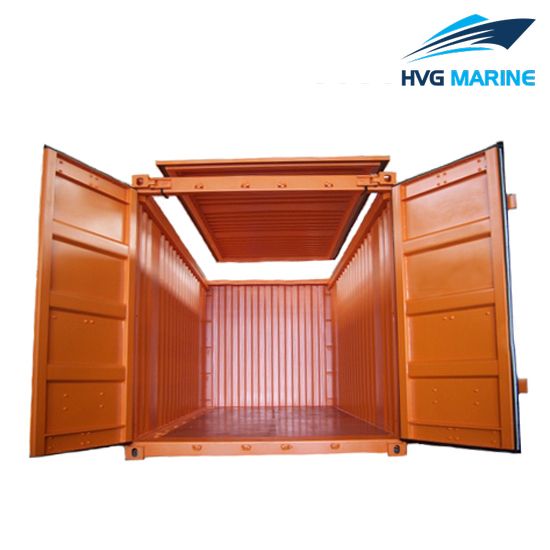

Hard open top container is equipped with a removable steel roof that could be lifted by forklift truck., which make it suitable for the rapid loading and unloading from top. We can also provide a half height or with special slope structure open top container according to different cargo transport demands and customer’s requiremants.

Product Details:

1. Type: Open top container
2. Material: Carbon steel
3. External Dimension: 6058*2438*2591mm/ 12192*2438*2896mm
4. Internal Dimension: 5898*2332*2339mm/ 12020*2340*2618mm
5. Maximum gross weight: 30480KG
6. Tare Weight: 3200KG/ 4900KG
7. Maximum payload: 27260KG/ 25580KG
8. Finish: Painted
9. Color: as your requirement
10. Certificate: CCS, BV, GL, ABS

Technical specification:

Specification: HSHOT

Hard Open Top Container		20ft	40ft
External(mm)	Length	6058	12192
	Width	2438	2438
	Height	2591	2896
Internal(mm)	Length	5898	12020
	Width	2332	2342
	Height	2339	2618
Door Opening	Width	2340	2336
Door Opening	Height	2266	2597
Roof Opening	Width	2130	11724
Roof Opening	Height	5416	2208
Max.Gross Weight(KG)		30480	30480
Tare Weight(KG)		3200	4900
Max. Payload(KG)		27260	25580
