HVG CONTAINER-SECURING FITTING 0057

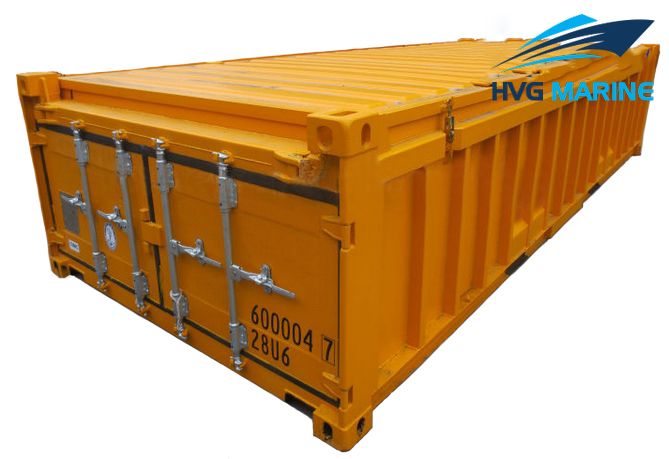

HVG CONTAINER-SECURING FITTING 0057: Half Height Offshore Container

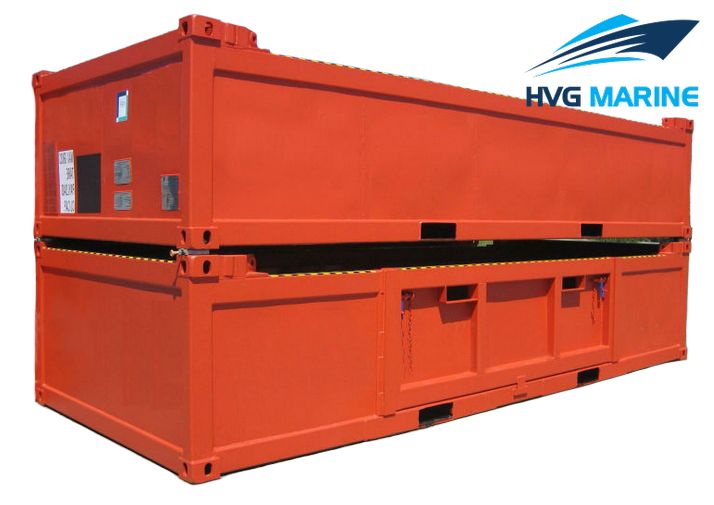

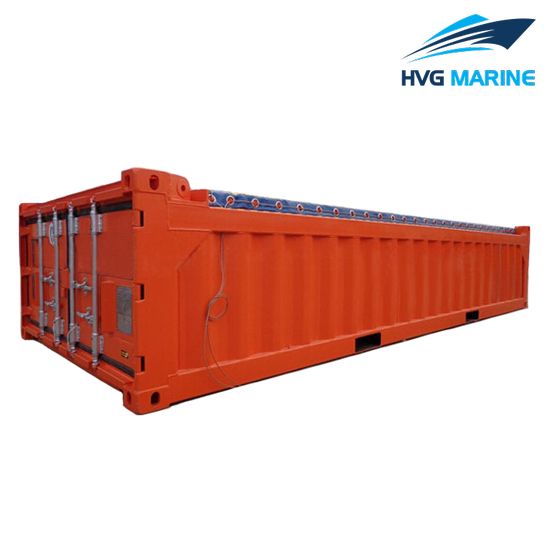

Half height offshore container is mainly used for the shipment of ore and other raw materials. The height of two 20ft soft half height open top container is equal to the height of 20ft standard container. The top of this container is open type, and it is covered with taupaulin. And all the containers have been certified by major classification society.

Product Details:

1. Type: Half height container
2. Material: Carbon steel
3. External Dimension: 6055*2438*1220mm
4. Internal Dimension: 5758*2013*880mm
5. Maximum gross weight: 13320KG
6. Tare Weight: 3320KG
7. Maximum payload: 10000KG
8. Soft top: Tarpaulin cover
9. Hard top: Steel cover
10. Finish: Painted
11. Color: as your requirement
12. Certificate: CCS, BV, GL, ABS

Technical specification:

Specification: HSHF

Dimension(LWH)	External	605924381220 mm
	Internal	57582013880 mm
Door Opening	Width	2430 mm
	Height	2280 mm
Maximun Gross Weight		13320 KG
Tate Weight		3320 KG
Maximum Payload		10000 KG
