    HVG YACHT 077

    The optimum of luxuriousness.
    The HVG YACHT 077 is one of our largest sailing yachts. But you hardly notice this when she is sailing, so unbelievably easy does this boat handle. Designed to accommodate up to ten crew members, the standard version comes with three cabins. However, at the owner’s request this could be changed to five cabins – to meet every need.

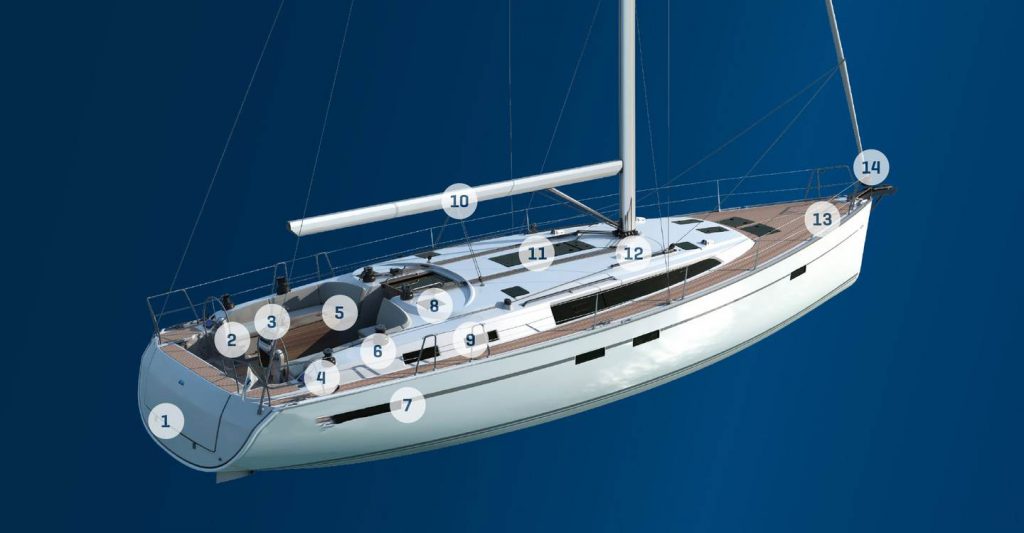

    Best equipment in the right places
    The perfect sailing yacht also needs the best equipment from well‐known producers.

    1. XXL-bathing platform
    2. Twin steering wheel
    3. Steering pedestal with GPS plotter
    4. Gennaker winches
    5. Foldable XXL-cockpit table
    6. Genoa winches
    7. Hull windows
    8. Halyard and bulkhead winches
    9. Rail gate
    10. Mainsheet system
    11. Flush hatches
    12. Genoa tracks
    13. Anchor locker
    14. Bow roller for anchor

    Technical specification:

    • Technical data
    Length hull 49′ 2”
    Length waterline 46′ 3”
    Beam overall 15′ 3”
    Draught standard cast iron keel (approx.) 7′ 3”
    Draught option cast iron keel as shallow keel (approx.) 6′
    Unloaded weight (approx.) 31.085 lbs
    Ballast (approx.) 10.141 lbs
    Engine Volvo Penta with Saildrive D2-75
    Engine Power 55 kW / 75 hp
    Fuel tank (approx.) 74 gal
    Water tank (approx.) 148 gal
    Cabins, standard version 3 / (optional 4 or 5)
    Bathroom, standard version 3
    Showers, standard version 2
    Separate shower cabin, standard version 1
    Berths, standard version 6 / (optional 8 or 10)
    Height in saloon (approx.) 6′ 9”
    Mainsail and furling jib, standard (approx.) 1.410 sq.ft.
    Height of mast above water line (approx.) 73′ 3”
    Height of mast above water line, option Intracoastal Waterway (approx.) 63′ 5”
