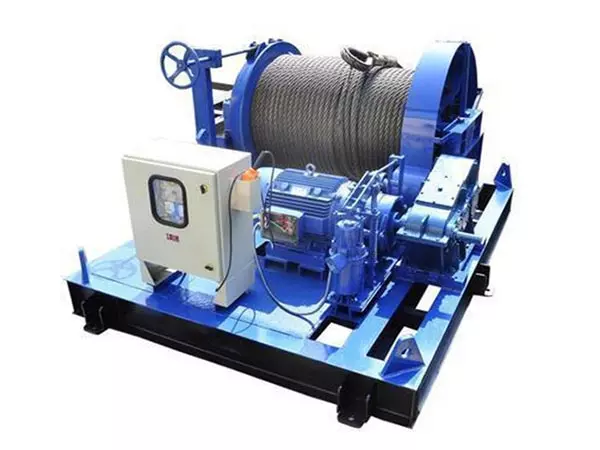

    HVG WINCH 0001

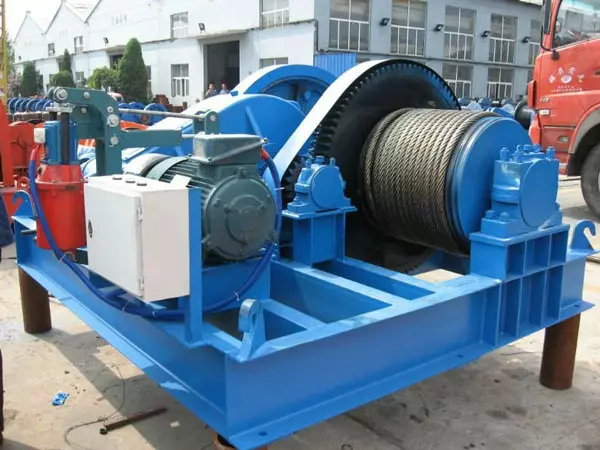

    Electric Winch for Sale

    •  Wire Rope
    •  3T
    •  As your requires
    •  0-45m/min
    •  ISO GB/T 20081-2001
    •  2 years
    •  Slip way, ship, dry dock
    •  As your requires
    •  Single/Double

    Features and Advantages:

    1. High safety and precision.
    2. Safety protection device.
    3. Starting and stopping smoothly.
    4. Reasonable structure, easy maintenance.
    5. Top quality with competitive price.

    Safety device:
    1. Double limit switch.
    2. Current overload protection device
    3. Buffer.
    4. Weight overload protection device.
    5. Emergency brake.

    Technical specification:

    • Technical Data Sheet
    Model Rated load(KN) Rated speed (m/min) Rope capacity Rope diameter Motor model Motor power Overall dimensions Total weight
    (m) (mm) (KW) (mm) (kg)
    JM1 10 15 100 9.3 Y112M-6 3 620*701*417 270
    JM2 20 16 150 13 Y160M-6 7.5 945*996*570 550
    JM3.2 32 10 150 15.5 YZR16M2-6 7.5 1430*1160*910 1100
    JM5 50 10 250 21.5 YZR160L-6 11 1235*1230*805 1500
    JM8 80 8 250 26 YZR180L-6 15 2090*1475*956 2600
    JM8B 80 9.5 350 26 YZ180L-6 15 1075*1589*985 2500
    JM10 100 8 170 30 YZR200L-6 22 2090*1475*956 3000
    JM10B 100 9.5 250 30 YZR200L-6 22 1705*1598*985 3500
    JM12.5 20 8 300 34 YZR225M-6 30 2880*2200*1550 5000
    JM13.5 32 5 290 28 YZP225S-8 22 2990*2363*1650 6500
    JM16 32 10 500 37 YZR250M2-8 37 3750*2400*1850 8800
    JM20 50 10 600 43 YZR280S-8 45 3950*2560*1950 9900
    JM25 50 9 700 48 YZR280M-8 55 4350*2800*2030 13500
    JM32 50 9 700 56 YZR315S-8 75 4500*2850*2030 14800
    JM50 50 9 800 65 YZR315M-8 90 4930*3050*2250 19500
    JM65 50 10.5 3600 64 LA8315-8AB 160 5900*4680*3200 46000
