HVG STEEL SHEET PILE 0032

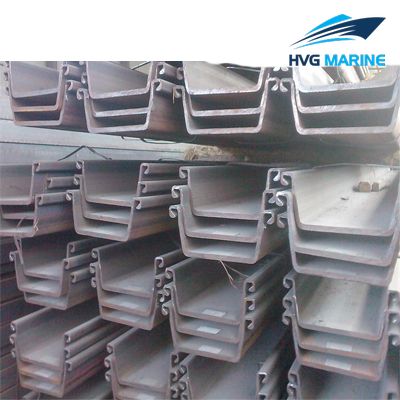

HVG STEEL SHEET PILE 0032: U Type Steel Sheet Pile:

HVG Marine Group could design and manufacture kinds of steel sheet piles,Including u type series,Z type series,L/S type series,Corner piles,Box pile,and any other combined sheet piles,any requirement please kindly contact us.we are chongqing Hi-Sea.

Steel Sheet Pile is popular applied in projects of offshore building, riverside building and some other projects need to prevent the sands, water, and mud. Cold-formed Steel Sheet Pile has advantages in lighter weight, higher modulus and lower cost compare to the hot rolled sheet pile, meanwhile it has no limitation on min. Quantity and has quick delivery。

Material:SS490, MDB350, S430GP, S270GP, S355GP,S235, S355GP, S430GP,Q345B,MDB350
Standard: EN10249

Technical specification:

Specification:

Size	Width (mm)	Height (mm)	Thickness (mm)	Per Piece				Per Meter of Pile Wall
				Section area	Inertia moment Ix	Section modulus	Weight (kg/m)	Section Area	Inertia moment Ix	Section modulus Wx	Weight (kg/m²)
				(cm²)	(cm⁴)	(cm³)		(cm2)	(cm⁴)	(cm³)
				(cm²)	(cm⁴)	(cm³)		(cm2)	(cm⁴)	(cm³)		400×85	400	85	8	45.21	598	88	35.5	113	4500	529	88.7
400×100	400	100	10.5	61.18	1240	152	48	153	8740	874	120.1
400×125	400	125	13	76.42	2220	223	60	191	16800	1340	150
400×150	400	150	13.1	76.4	3060	278	60	191	22600	1510	150
400×170	400	170	15.5	96.99	4670	362	76.1	242.5	38600	2270	190
500×200	500	200	24.3	133.8	7960	520	105	267.6	63000	3150	210
500×225	500	225	27.6	153	11400	680	120	306	86000	3820	240
600×130	600	130	10.3	78.7	2110	203	61.8	131.2	13000	1000	103
600×180	600	180	13.4	103.9	5220	376	81.6	173.2	32400	1800	136
600×210	600	210	18	135.3	8630	539	106	225.5	56700	2700	177
