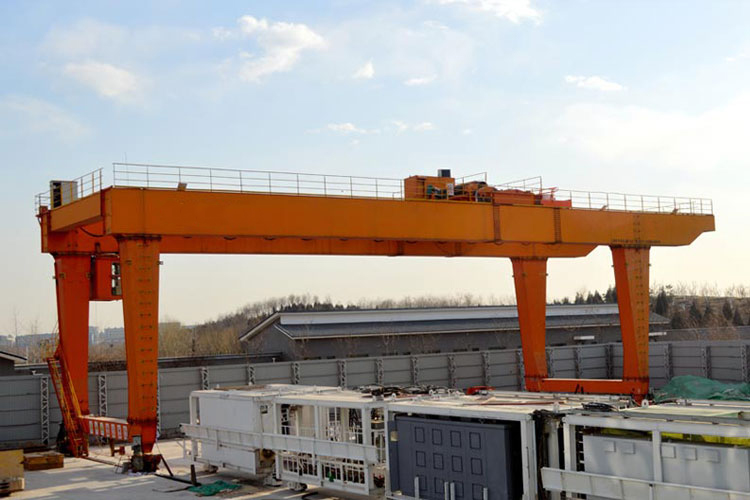

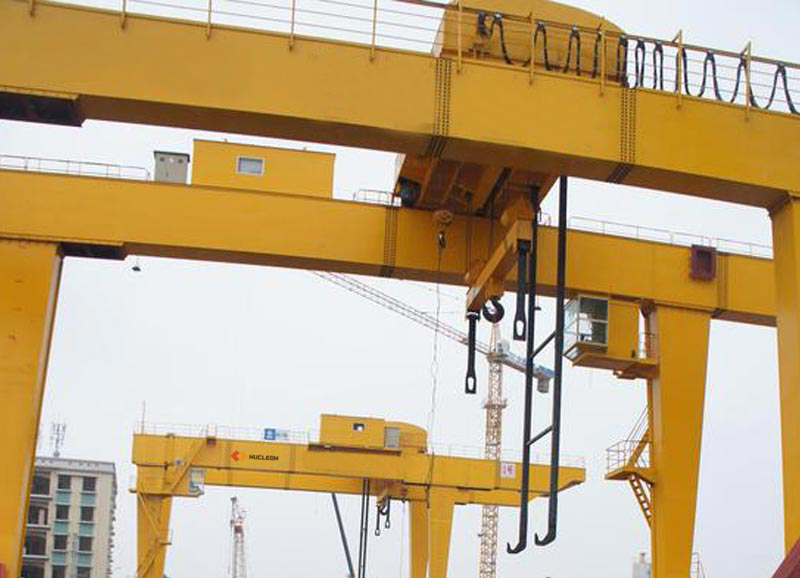

    Gantry Crane for Shield

    • Capacity: 100~400t
    • Span: 20~34m
    • Lifting Height: 22~39.8 m
    • Working Grade: A3~A4
    • Power Supply: 3-Phase AC, 50 HZ, 380V
    • Applications: Suitable for outdoor handling or industrial manufacturing of various materials and goods, such as: shipyard, tile factory, stone factory, coal mine, factory, construction
    • engineering, steel structure processing, terminal container handling, etc.

    Description of Gantry Crane for Shield
    The gantry crane for shield is mainly used for the installation of the cutter head and the shield of the underground non-excavation equipment shield machine, and the lifting of the tunnel support tube during the construction process.

    Technical specification:

    • Technical Data of Gantry Crane for Shield
    Lifting capacity t 400
    Working level A3
    Span m 33 34
    Lifting height Main lifting m 24（up rail）

    /23（under rail）

    		 24（up rail）

    /23（under rail）
    Deputy lifting 22（up rail）

    /26（under rail）

    		 22（up rail）

    /26（under rail）
    Speed Main lifting m/min 0.09~0.9 0.09~0.9
    Deputy lifting 7 7
    Crane travelling 1.6~16 1.6~16
    Crab travelling 1.15~11.5 1.15~11.5
    Dimensions L1 mm 2500
    L2 3500
    H1 3196
    H2 22000
    B 14000
    B1 22800
    b1 1920
    b2 1250
    W 4500
    D 6000
    Max. wheel load KN 406 415
    Rail recommended QU100
    Power Three-phase AC 50Hz 380V
    Spreader rotation angle ° ±90°
    Cutter diameter m 15
