HVG RIGGING-LIFTING 0421

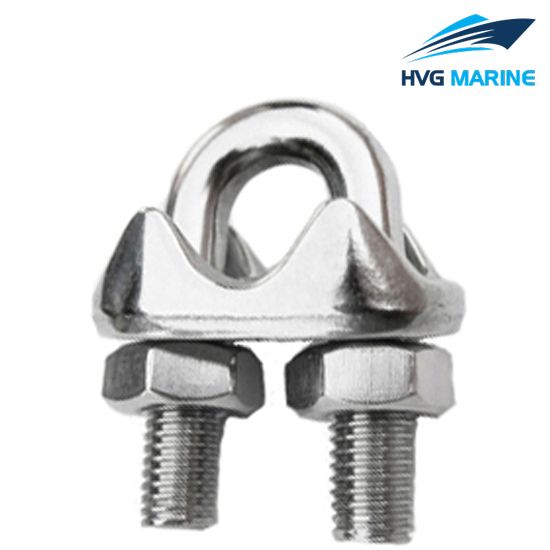

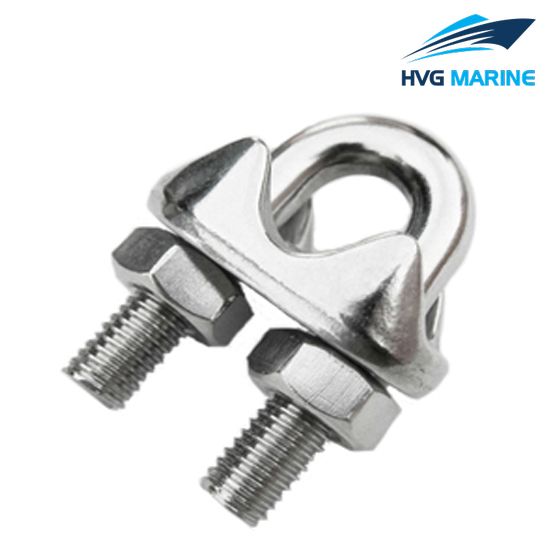

HVG RIGGING-LIFTING 0421: Italian Stainless Steel Wire Rope Clip:

Italian stainless steel wire rope clips are widely use in marine equipment. Our company can offer you all sizes of this product. Please feel free to get in touch with us.

Details:

1. Standard: Italian type
2. Material: Stainless steel
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Polished
5. Size: From 2mm to 32mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to ustomers requirements

Technical specification:

Specification:

RopeΦ	A	C	S	H	L	WT
mm	mm	mm	mm	mm	mm	kg
2	M3	15.5	5	10	19	0.007
3	M4	20	5.5	10	23	0.012
4	M4	20	4.5	10	23	0.013
5	M5	23	4	10	29	0.017
6	M6	26	6	11	33.5	0.028
8	M6	29	6.5	15	35	0.037
10	M8	34	6.5	17	44	0.068
12	M10	40	8.5	20.5	55	0.124
14	M10	43	9	21.5	56	0.136
16	M12	49	9	25	67	0.211
18	M12	52	10	30	79	0.260
20	M12	52	11	30	79	0.261
22	M12	60	12	34	88	0.345
24	M12	67	10	23	86	0.354
26	M14	65	16	37	110	0.531
30	M16	74	13	43	112	0.661
32	M14	74	13	43	115	0.572
