HVG RIGGING-LIFTING 0415

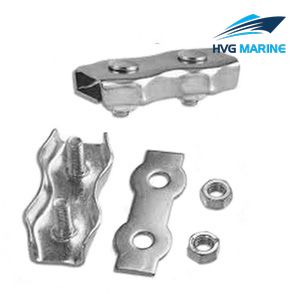

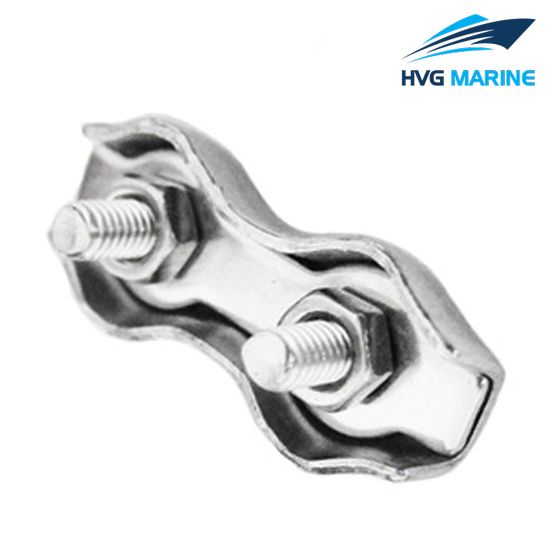

HVG RIGGING-LIFTING 0415: Stainless Steel Duplex Wire Rope Clip

Stainless steel duplex wire rope clip is an essential hardware item for heavy-duty rigging rope, wire and cable. And it is suitable for marine applications. Our company can provide you with all sizes of this product. And we are looking forward to cooperate with you.

Details:

1. Model: Duplex Wire Rope Clip
2. Material: Stainless Steel
3. Usage: Wire rope fittings
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 2mm to 10mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, etc.
9. Notes: Special specifications and marks can be made according to customers requirements

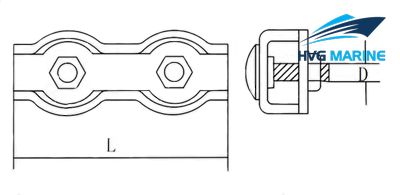

Technical specification:

Specification:

RopeФ	A	B	C	D	E	F	Bolt	WT
mm	mm	mm	mm	mm	mm	mm	mm	kg
2	30	12	7	1	5	15	M4*13	0.008
3	34	15	9	1	6	16	M4*13	0.011
4	40	19	12	1.5	6	20	M5*17	0.021
5	50	20	14	1.5	8	25	M5*17	0.026
6	60	25	17	2	9.5	30	M6*22	0.052
8	75	31	23	2	10	38	M8*29	0.091
10	96	38	27	2.5	14	48	M10*31	0.180
