HVG RIGGING-LIFTING 0332

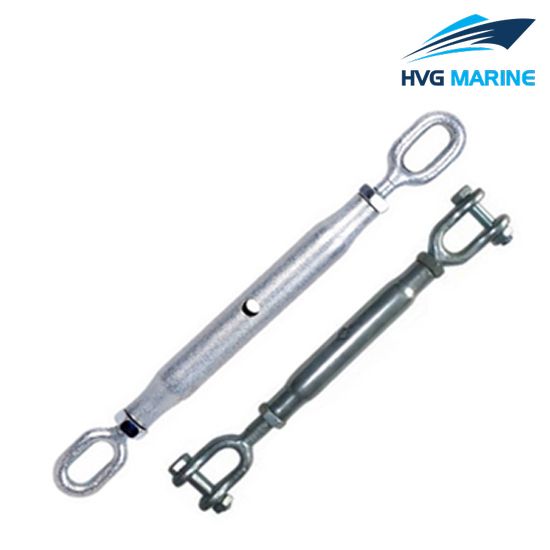

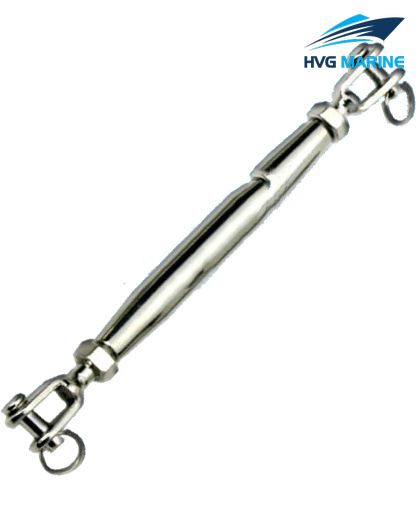

HVG RIGGING-LIFTING 0332: U.S. Type Forged Closed Body Turnbuckle

This kind of product has the best corrosion resistance among others, because of its high quality stainless steels. It resists pitting and corrosion by most chemical, and is particular resistant to saltwater corrosion.

Product details:

1. Item: US type closed body turnbuckle
2. Standard: US type
3. Material: Stainless steel
4. Type: hook&hook, eye &hook, eye&eye
5. Technology: drop forged
6. Surface: dipped galv
7. Size: M5-M16
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement

Technical specification:

Specification:

SIZE(mm)	A(mm)	B(mm)	D(mm)	L1(mm)	L2(mm)	WT(kg)
M5	9	81	5	122	180	0.048
M6	9	90	5	137	210	0.084
M8	10	110	6	155	250	0.122
M10	11	120	8	178	275	0.206
M12	16	150	10	237	350	0.359
M16	15	190	14	280	450	0.84
