HVG RIGGING-LIFTING 0231

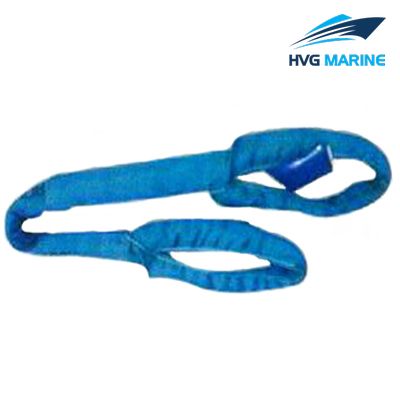

HVG RIGGING-LIFTING 0231: Eye Type Dyneema Sling:

The surface of Dyneema lifting sling is smooth with low friction coefficient, and it is not easy to fluff. The strong corrosion and radiation resistance make it has good stability under ultraviolet light. Beside that, it has advantages of good flexibility, light weight, strong tensile strength, excellent aging and wear resistance, small diameter and low elongation.

Details:

1. Model: Eye Type Dyneema Sling
2. Material: Dyneema
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

WLL	Approx thickness	Approx width	Minimum length	Maximum length	Weight
kg	mm	mm	m	m	kg/m
1000	12	24	1.5	To be customized	0.13
2000	18	26	1.5		0.21
3000	22	35	1.5		0.25
4000	25	45	1.5		0.27
5000	30	50	1.5		0.29
6000	32	55	2		0.33
8000	35	65	2		0.53
10000	38	70	3		0.74
12000	40	75	3		0.97
15000	45	80	4		1.27
20000	45	95	4		1.73
25000	48	110	4		2.17
30000	60	125	6		2.60
40000	65	130	6		3.47
50000	70	140	8		4.30
60000	72	150	8		5.20
80000	75	155	10		6.93
100000	80	160	15		8.30
