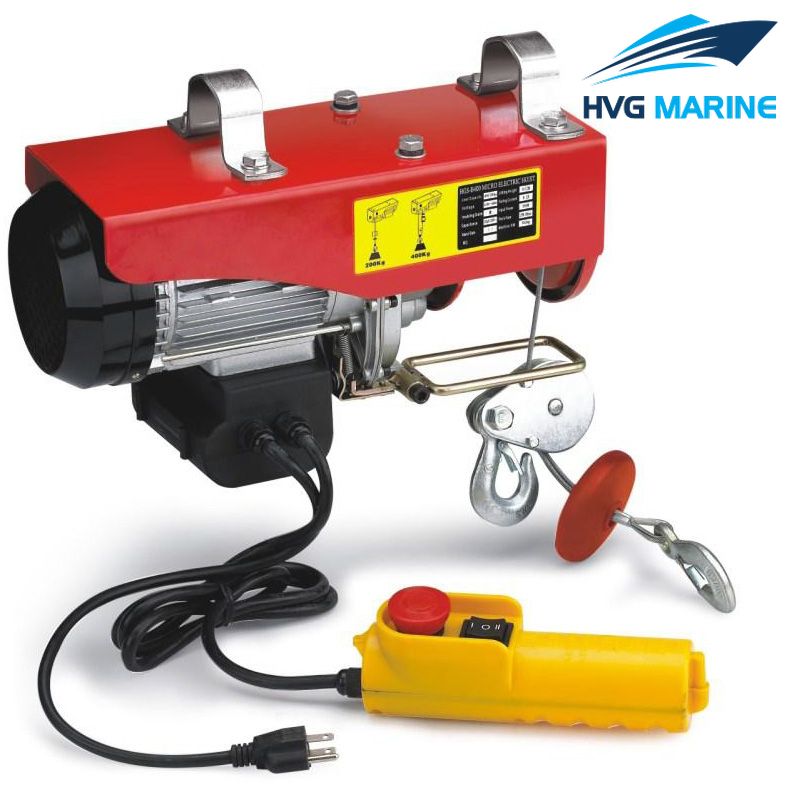

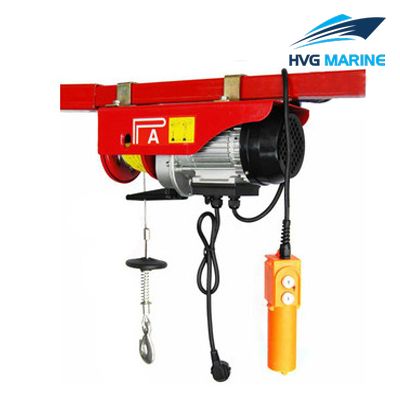

PA Type Mini Electric Wire Rope Hoist

PA type mini electric wire rope hoist, also known as daily used hoist, is a kind of lifting machine with small volume, light weight and simple structure. It can be used to lift goods under 1000kg, especially suitable for high bulidings to lift heavy objects from downstairs. It can easily lift the heavier articles from downstairs for daily use, and appliable to load and unload small goods for various occasions.

Product details:

1. Minimum capacity: 0.1T: maximum capacity: 0.6T
2. Power supply: 220V
3. Insulation grade: F
4. Usage: lifting, fixing, binding, traction and so on.
5. The main parts of it adopt high quality steel product to ensure durability.
6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.
2. Do not over weight used.
3. Do not expose the hoist in rain or very humid place.
4. Strictly prohibit people to work under it when it working.
5. Gear and spring should be maintained regularly to prevent brake failure.
6. Please select the appropriate tonnage of block according to the weight of the load.

Technical specification:

Specification:

Modle	Method of use	Light weight(kg)	Light height(m)	Rated volt.(V)	Input power(w)
PA200	Single-hook	100	12	220/230	510
PA200	Double-hook	200	6		510
PA250	Single-hook	125	12		510
PA250	Double-hook	250	6		510
PA300	Single-hook	150	12		600
PA300	Double-hook	300	6		600
PA400	Single-hook	200	12		980
PA400	Double-hook	400	6		980
PA500	Single-hook	250	12		1020
PA500	Double-hook	500	6		1020
PA600	Single-hook	300	12		1200
PA600	Double-hook	600	6		1200
