HVG RIGGING-LIFTING 0220: Stage Used Manual Chain Block

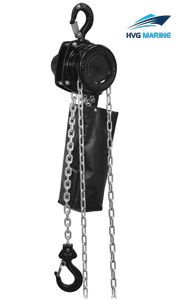

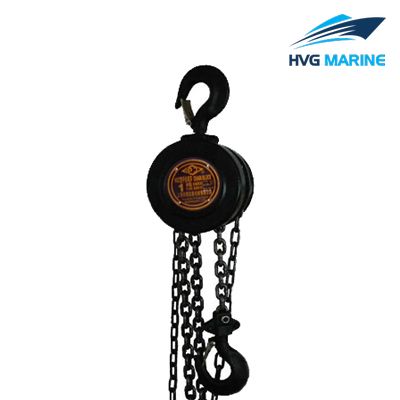

The black stage used manual chain block is a 360-degree rotating lifting equipment. Which is especially designed and produced for stage hoisting and industrial hoisting in limited place. It adopts imported lifting chain, double friction plates and has solid steel casing and overload protection function.

Product details:

1. Minimum capacity: 0.5T: maximum capacity: 50T
2. Usage: lifting, fixing, binding, traction and so on.
3. The main parts of it adopt high quality steel product to ensure durability.
4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.
2. Do not over weight used.
3. Do not expose the hoist in rain or very humid place.
4. Gear and spring should be maintained regularly to prevent brake failure.
5. Please select the appropriate tonnage of block according to the weight of the load.

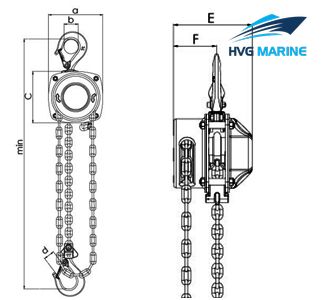

Sketch of the stage used manual chain block

Technical specification:

Specification:

Capacity(T)	0.5	1	1.5	2	3	5	10	20	30	50
Lifting height(m)	2.5	2.5	2.5	2.5	3	3	3	3	3	3
Test load(T)	0.75	1.5	2.25	3	4.5	7.5	12.5	25	27.5	62.5
Min.distance of hooks(mm)	270	270	368	444	486	616	700	890	980	1300
No.of chain	1	1	1	2	2	2	4	8	12	22
Dia.of chain(mm)	6	6	8	6	8	10	10	10	10	10
