HVG RIGGING-LIFTING 0211

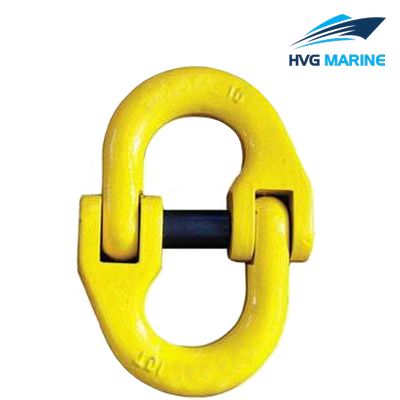

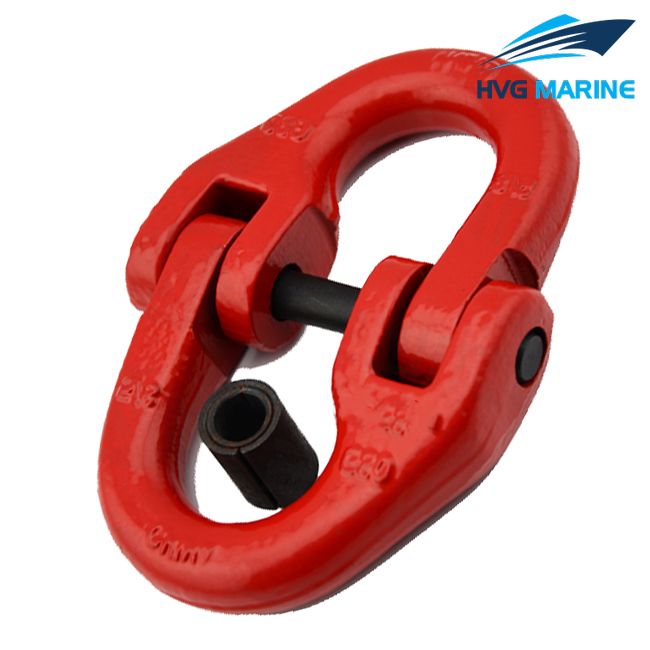

HVG RIGGING-LIFTING 0211: G80 U.S. Type Connecting Link

G80 US type connecting link is simple to be assembled and can be disconnected if required. It is just take a few minutes, and the only tools are a hammer and a punch. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document.

Product Details:

1. Item: G80 US type connectint link
2. Grade: G80
3. Type: US type
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 3250lbs-28700lbs
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 7mm-24.5mm
11. Special specifications and marks can be made according to customers requirement

Sketch of the G80 US type connecting link

Technical specification:

Specification:

WLL(lbs)	Weight(kg)	B.L(lbs)	A(mm)	H(mm)	K(mm)	L(mm)
3250	0.24	13000	16.5	7	55	69
4500	0.32	18000	18	8.5	62.5	79.5
6600	0.58	26400	27	11.5	68.5	91.5
11250	1.2	45000	35	15	81	111
16500	2.42	66000	42	21	95.5	137.5
23000	3.89	92000	43	22.5	126	171
28700	6.08	11500	48	24.5	141.5	190.5
