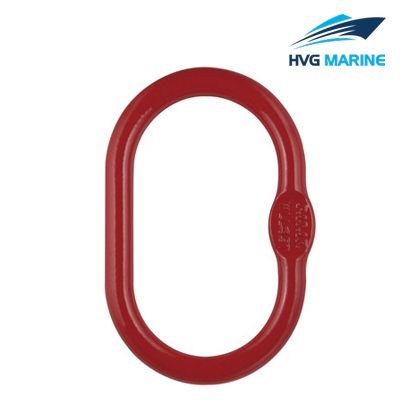

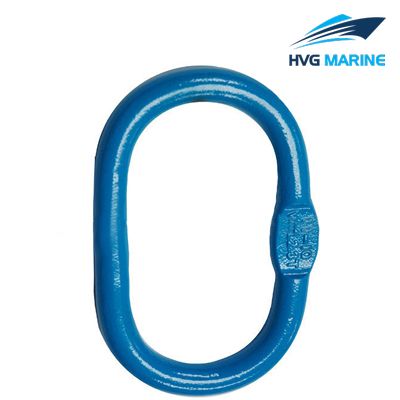

HVG RIGGING-LIFTING 0208: G100 Master Link with Flat

G100 master link with flat has the advantages of small volume, light weight and high strength. The working load limited of it is from 1.4 ton to 81.5 ton. And its size is from 10mm to 70mm. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: G100 master link with flat
2. Grade: G100
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, powder coated
6. WLL:1.4T-81.5T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 10mm-70mm
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

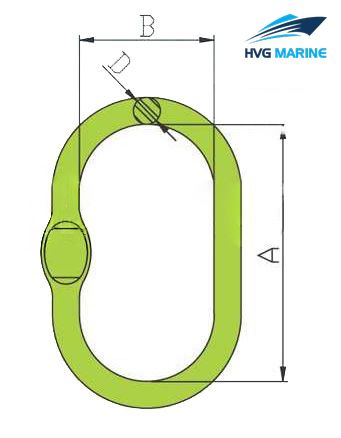

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	D(mm)
1.4	0.14	5.6	80	50	10
2.3	0.34	9.2	110	60	13
3.5	0.53	14	110	60	16
5	0.86	20	135	75	18
7.6	1.6	30.4	160	90	23
10	2.46	40	180	100	27
14	4.14	56	200	110	33
25.1	6.22	100.4	260	140	36
30.8	12.85	123.2	340	180	45
40	16.55	160	350	190	50
60	27.01	240	400	200	60
81.5	45	326	460	250	70
