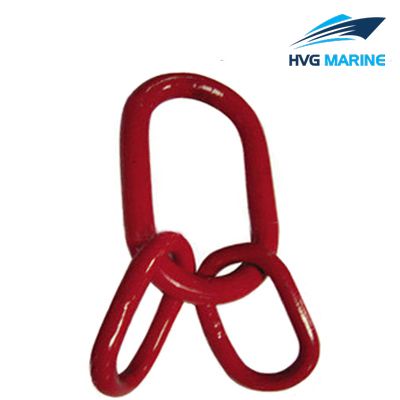

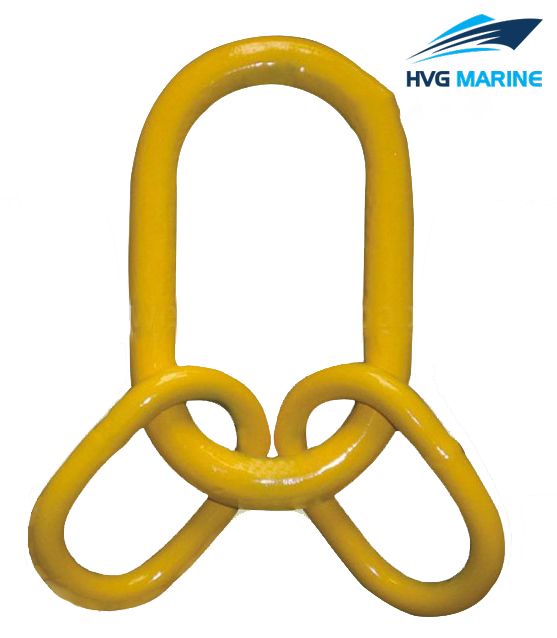

HVG RIGGING-LIFTING 0191: A346 Welded Master Link Assembly

A346 welded master link assembly is made by high quality alloy steel. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document. All the procedures from raw material purchase to delivery will be strictly examed.

Product Details:

1. Item: A346 welded master link assembly
2. Grade: G80
3. Type: European type
4. Material: Forged alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 2.36T-63T
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 18mm-72mm
11. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	D(mm)	a(mm)	b(mm)	d(mm)
2.36	1.18	9.44	135	75	18	54	25	13
3.15	1.24	12.6	135	75	18	60	38	13
4.25	2.2	17	160	90	22	70	34	16
6.7	3.4	36.8	180	100	26	85	40	18
11.2	6.1	44.8	200	110	32	115	50	22
17	9.98	68	260	140	36	140	65	26
21.2	18.9	84.8	340	180	45	180	100	32
26.5	22.6	1.6	350	190	50	180	100	32
31.5	25.2	126	350	190	50	180	100	36
45	36.26	180	400	200	56	200	110	40
50	47.11	200	430	220	63	200	110	45
63	66.46	252	460	250	72	200	110	50
