HVG RIGGING-LIFTING 0167

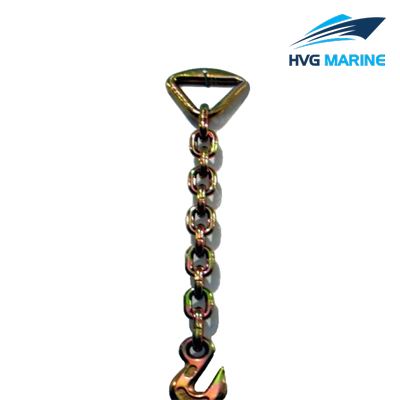

HVG RIGGING-LIFTING 0167: Triangle Ring Chain Sling with Eye Grab Hook

Triangle ring chain sling with eyey grab hook is made of premium alloy steel sted with good ware-resisting quality. According to the difference of hoisting height, it can adjust the length of the chain. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: Triangle ring chain sling with eye grab hook
2. Grade: G80
3. Structure: Weldedchain
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, polished, color painted
7. Function: Drag chain
8. Must be used in the range of its rated load.
9. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

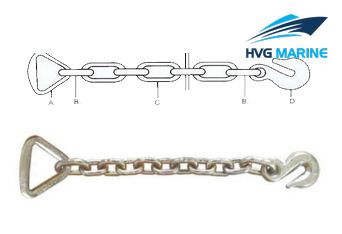

Length(in)	Weight(kg)	A(in)	B1(in)	B2(in)	C(in)	D(in)
18	1.17	2	3/8	3/8	5/16*11	5/16
18	1.17	2	3/8	3/8	5/16*11	3/8
18	1.32	3	7/16	7/16	5/16*10	5/16
18	1.48	3	7/16	7/16	3/8*9	3/8
18	1.28	3	7/16	7/16	3/8*5	3/8
18	1.68	4	7/16	7/16	3/8*9	3/8
18	1.3	4	3/8	3/8	5/16*10	5/16
18	1.35	4	7/16	7/16	3/8*9	3/8
