HVG RIGGING-LIFTING 0137

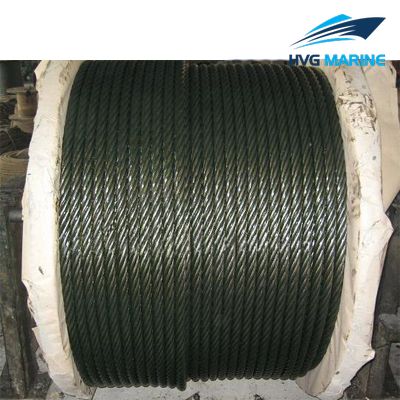

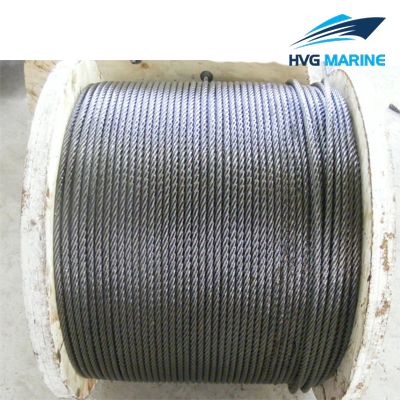

HVG RIGGING-LIFTING 0137: Elevator Steel Wire Rope

Elevator steel wire rope, as the name means, is the wire rope used in elevator. In commodity residential community, the specifications of elevator wire rope are ganerally 8*19S+FC. Usually, the new wire rope has been lubricate during production, but in the use process, the lubricating grease will lose. So, it is necessary to inspect lubrication regularly.

Product Details:

1. Item: Elevator steel wire rope
2. Construction: 8*19S, 8*19W
3. Type: steel wire rope
4. Tensile Strength: 1570, 1670, 1770, 1870 Mpa.
5. Finish: Galvanized
6. Material: Steel
7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed
2. Never overload, and never shock load a wire rope
3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts
4. It is important to clean and replace lubricant to the wire rope periodically.

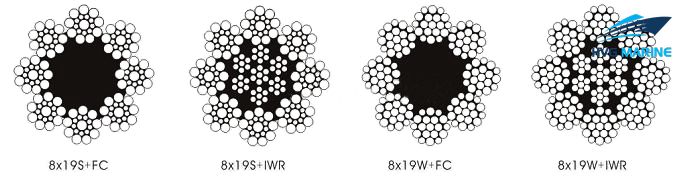

Structure of Elevator Steel Wire Rope

Technical specification:

Specification:

Nominal Diameter	Approx. Weight(kg/100m)		Nominal Tensile Strength of Rope (MPa)
			1470		1570		1670		1770		1870
			Minimum Breaking Load of Rope (KN)
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
8	22.1	27	27.5	32.5	29.4	34.7	31.3	36.9	33.1	39.2	35	41.4
9	28	34.2	34.8	41.1	37.3	44	39.6	46.7	42	49.6	44.3	52.4
10	34.6	42.2	43	50.8	46	54.3	48.9	57.7	51.8	61.2	54.7	64.7
11	41.9	51.1	52.1	61.5	55.6	65.7	59.2	69.9	62.7	74.1	66.2	78.2
12	49.9	60.8	62	73.2	66.2	78.2	70.4	83.2	74.6	88.1	78.8	93.1
13	58.5	71.3	72.7	85.9	77.7	91.8	82.6	97.6	87.6	103	92.5	109
14	67.9	82.7	84.4	99.6	90.1	106	95.9	113	101	120	107	126
16	88.7	108	110	130	117	139	125	147	132	156	140	165
18	112	137	139	164	149	176	158	187	168	198	177	209
20	139	169	172	203	184	217	195	231	207	244	219	258
22	168	204	208	246	222	262	236	279	251	296	265	313
24	199	243	248	292	264	312	281	332	298	352	315	372
