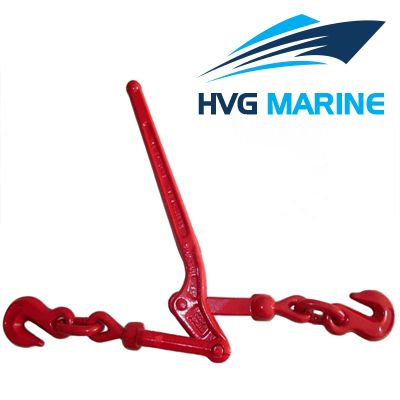

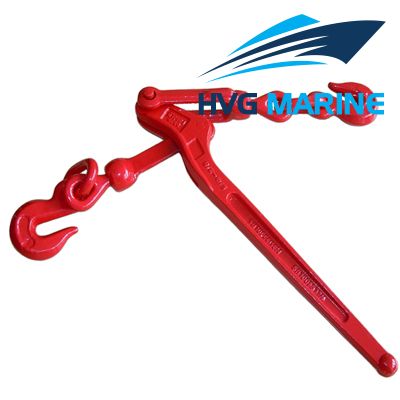

HVG RIGGING-LIFTING 0064: US Type Standard Lever Type Load Binder

US type standard lever type load binder is die forged from high quality 45# low carbon steel or melleable iron. Compared with other tension methods, the work efficiency of it is higher. And we can provide it with sufficient supply, fast delivery time and complete specification.

Product Details:

1. Model: US type standard lever type load binder
2. Material: Carbon steel, melleable iron
3. Standard: US type
4. Technology: Forged, casting
5. Surface: Power coating, Galvanized
6. SWL: 2200lbs-11000lbs
7. Weight: 3.52lbs-19.7lbs
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

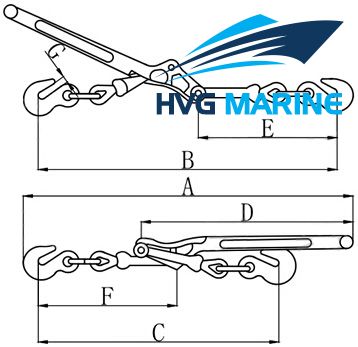

Chain Size	WLL	B.L.	Weight	A	B	C	D	E	H	G
in	lbs	lbs	lbs	mm	mm	mm	mm	mm	mm	mm
1/4-5/16	2200	7800	3.52	18.5	17.3	14.2	11.42	8.27	8.07	0.35
5/16-3/8	5400	19000	8.37	15.43	23.2	19.5	15.55	11.22	11.22	0.51
3/8-1/2	9200	28000	12.11	17.24	26.4	22.1	17.64	12.99	12.2	0.59
1/2-5/8	11000	44000	19.7	21	30.1	25.9	20.87	14.37	14.37	0.74
