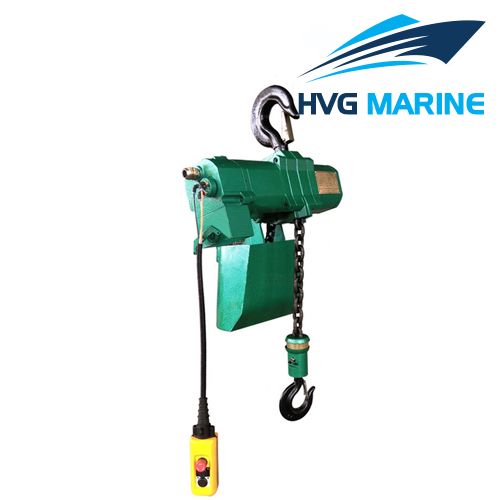

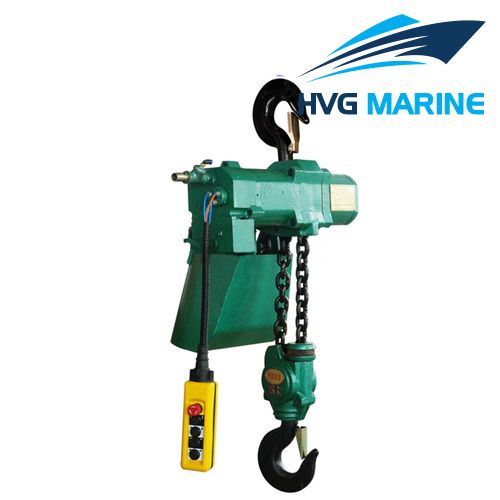

HVG RIGGING-LIFTING 0023: 3T Hook Suspended Pneumatic Chain Hoist

According to different model, the hoist capacity ranges from 125kg to 30 tons. A certain pressure of compressed air can drive it to work with low energy consumption and high efficiency. Cooperating with various non-standard clamps, pneumatic hoist can lift workpieces with all kinds of shapes. Installing with cantilever crane or guide rail to realize the move.The speed of it is 3 times of electric hoists and 5 to 10 times of manual chain hoist.

Product Details:

• 1. Model: 3T, 5T,6T pneumatic air chain hoist
• 2. Power source: Compressed air
• 3. Usage: Hoist
• 4. Working Pressure: 0.6 Mpa
• 5. Lifting Height: 3m
• 6. Motor Output Power: 3.5kw
• 7. Rated Load speed: 1.8-3.5m/min
• 8. Air Consumption: 5.5m³/min
• 9. Packaging: Gunny bag or carton then on steel pallet
• 10. Special specification and marks can be made according to order quantity

Advantages:

• 1. Suitable for complex environment and dangerous situation.
• 2. Strong power, solid structure, low noise.
• 3. Overload protection to ensure safety.
• 4. Stepless speed regulation is available when lifting or lowering.
• 5. High efficiency, easy to operate.
• 6. Precision positioning.
