• PIPES - PIPE FITTINGS 0045
    HVG PIPES – PIPE FITTINGS 0045

    HVG PIPES – PIPE FITTINGS 0045: Pipe Fitting:

    HVG Marine is the earliest professional manufacturer and exporter of marine equipment and spare parts. Company has its own marine equipment and castings shareholding factory, a professional international business sales team.

    As one of the professional suppliers of pipe fittings, we aiming at providing reliable product and satisfying service with high technologies and passions.

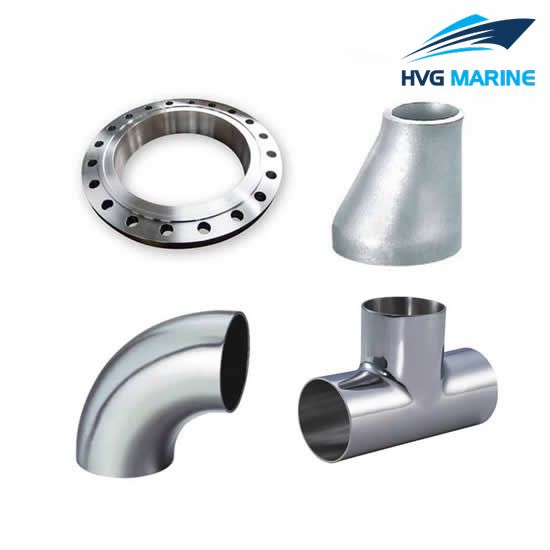

    Pipes, flange, tee, cross, elbow, bend, pipe caps, dish end, reducer, are available.

    Technical specification:

    • Technical specification
    • Flange
    1.Nominal diameter: DN15 ~ DN2400
    2.Wall thickness: 1.6 ~ 40mm
    3.Standard:
    ASTM A234 WPB, ANSI, JIS, DIN, GB/T, SH3408/09,HG/T216, SY/T,
    4. Material:
    Carbon steel: A234WPB, A106, A105, Q235, ST37.2, GB10#, GB20#,Etc.
    Stainless steel: SUS321, 304.304L, 306, 306L, 317L, 904L,Etc.
    Alloy steel: 16Mn, 16MnR, 12CrMoV, 10CrMo910, Cr5Mo, 15CrMo, WB36, P51
    5.Application: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
    6.Finish: Satin, Polish, Painted, Brush
    7.Connection: thread, weld,
    Flanges types:
    Slip on flanges, welding neck flanges, long welding neck flanges, blind flanges, plate flanges, socket welding flanges, threaded flanges, lap joint flanges, orifice flanges, loose plate flanges.
    Material:
    Carbon steel , Stainless steel, Alloy steel:

    A105, A36, Rst37.2, St37.2, C22.8, SA350 LF2/LF1, Q235, Q345, SS400, SF45, S235GRJ2,

    304,304L,316,316L

    Surface treatment:
    Antirust oil, yellow, epoxy coating, nylon surface,hot galvanized,electrical galvanized
    Making type:
    Forged or casted
    Standard:
    ANSIB16.5/B16.47/B16.48/B16.36, ASME,MSS SP44, AWWA C207,DIN2527, DIN2566, DIN2573,DIN2576,DIN2641,DIN2642, DIN2655, DIN2656, DIN2627, DIN2628,DIN2629, DIN 2631, DIN2632,DIN2633,DIN2634,DIN2635,DIN2636, DIN2637, DIN2638, DIN2673 BS4504/10, JIS, EN 1092, NF, API590 FIG.8, GB, etc.
    Pressure grade:
    ASTM B16.5: 150LBS, 300LBS,400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS

    DIN: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar

    BS4504: PN2.5-PN40

    BS10: Table D, E, F, H

    JIS: 5K,10K, 16K, 20K, 30K

    Our products are highly demanded and praised by customers in Europe, America, Japan, Australia, New Zealand, and other countries and regions.

    We insist on doing everything seriously, and continuously improve and enhance our team’s capabilities and services. In order to meet your needs, our team ready to go all out! Once you selected, we want to be your partner forever!
