OVERHEAD CRANE 0021
    • OVERHEAD CRANE 0021
    HVG OVERHEAD CRANE 0021

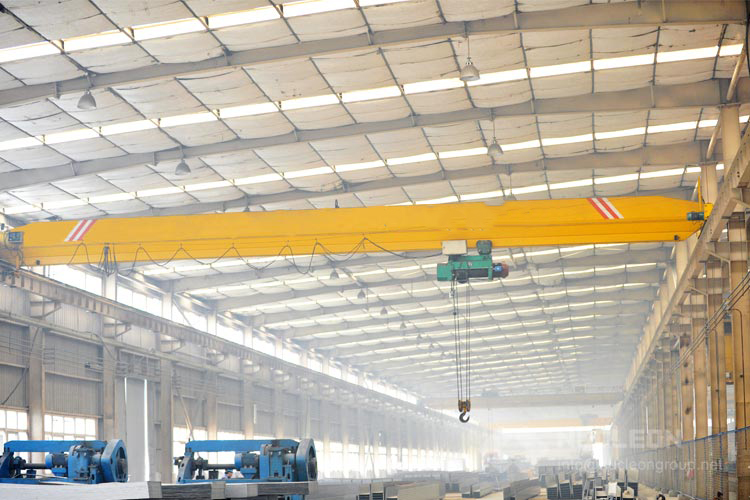

    LDY Metallurgy Electric Single Girder Overhead Crane

    • Capacity: 2~10t
    • Span: 7.5~28.5m
    • Lifting Height: 9~20 m
    • Working Grade: A3~A4
    • Power Supply: 3-Phase AC, 50 HZ, 380V
    • Applications: Most workshop such as steel mill, smelter, foundry, steel structure plant, machinery factory,car production, aircraft manufacturing, aerospace engineering, paper mill, glass factory, nuclear industry, power plant, electrolytic aluminum, hot galvanizing, etc

    Technical specification:

    • Technical Data of LDY Metallurgy Electric Single Girder Overhead Crane
    crane travelling
    mechanism    		 travelling speed(m/min) 20 30
    speed ratio 58.95 39.42
    motor type cone squirrel-cage
    power(kw) 0.8×2 & 1.5×2
    rotational speed
    (r/min)    		 1380
    lifting mechanism
    (electric hoist)&
    electric hoist
    travelling mechanism    		 model of electric hoist YHⅡ model
    lifting speed(m/min) 8, 7
    lifting height(m) 9, 12, 15, 18, 20
    travelling speed(m/min) 20
    motor cone squirrel-cage model
    working system intermediate Jc=25%
    electric current 380V, 50Hz, three-phase
    wheel diameter φ270, φ400
    width of trail 37 – 70

    Related Products:

    CraneCONTAINER CRANE 0002
    HVG CONTAINER CRANE 0002
    CraneELECTRIC HOIST 0001
    HVG ELECTRIC HOIST 0001
    CraneCONTAINER CRANE 0003
    HVG CONTAINER CRANE 0003
    CraneELECTRIC HOIST 0002
    HVG ELECTRIC HOIST 0002
    CraneGANTRY CRANE 0002
    HVG GANTRY CRANE 0002

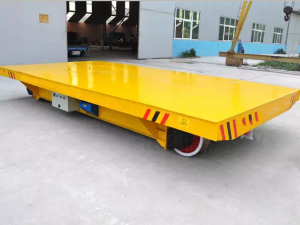

    CraneELECTRIC TRANSFER CART 0001
