    HVG OVERHEAD CRANE 0020

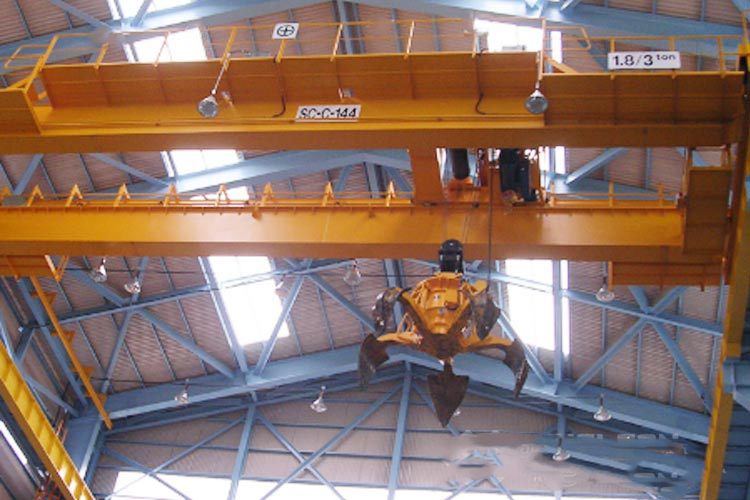

    QZ Type Overhead Crane with grab Cap.5-20t

    • Capacity: 5~20t
    • Span: 10.5~31.5m
    • Lifting Height: 18~28 m
    • Working Grade: A6
    • Power Supply: 3-Phase AC, 50 HZ, 380V
    • Applications:Garbage disposal, waste recycling, metallurgy, hydropower, aerospace, shipbuilding, automotive, coal, petrochemical and other industries

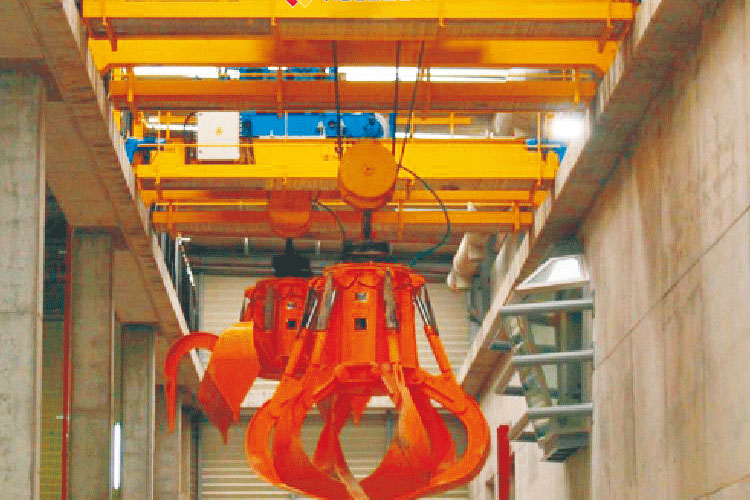

    Description of QZ Type Overhead Crane with grab Cap.5-20t
    QZ bridge cranes with grabs are widely used to carry bulk materials such as ports, factories, workshops, power plants, landfills and waste collection stations.

    Technical specification:

    • Technical Data of QZ Type Overhead Crane with grab Cap.5-20t
    Lifting capacity t 5 10
    Span m 10.5 115 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
    Lifting Height m 20 18
    Duty A6 A6
     Speed  Hoisting 39.2 39.3
     Crab travelling m/min 44.6 45.9
     trolley travelling 93.6 113.6 112.5 101
    limit dimensions S1 1635 2015
    S2 mm 1635 1850
    main
    dimensions    		 B 6568 6638 7163 6913 6963 7388 7413
    W 4000 4050 5000 4000 4100 5000
    K mm 2000 2000
    H 1876 1926 2078 2168
    H1 765 850 815 940
    H2 128 228 328 478 628 728 878 1028 180 230 380 390 540 690 840 940
    H3 2548 2648 2748 2898 3048 3148 3298 3448 2600 2650 2800 2810 2960 3110 3260 3360
    H4 3063 3163 3263 3413 3563 3663 3813 3963 3927 3977 4127 4137 4287 4437 4587 4687
    H5 850 700
    b 230 230 260
