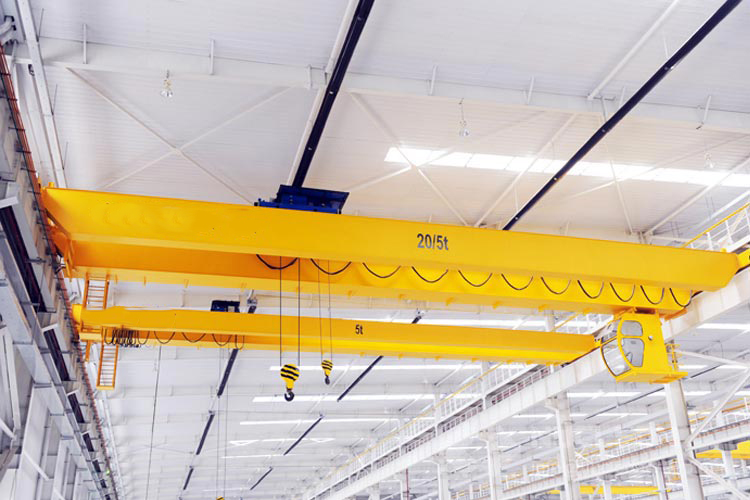

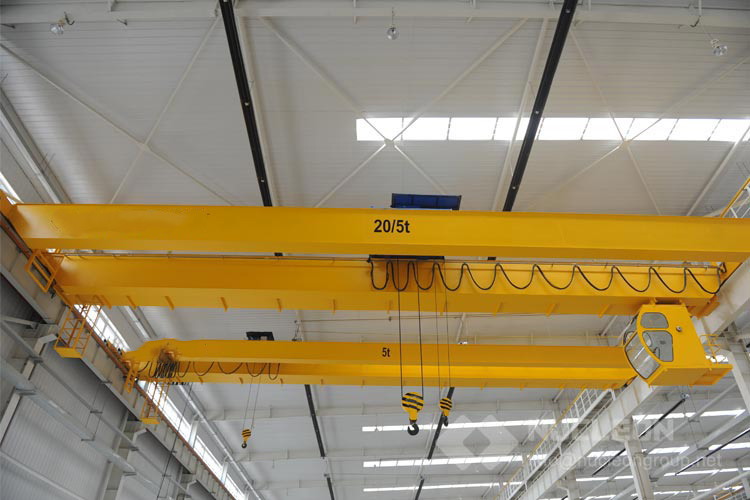

    NLH European Style Double Girder Overhead Crane

    • Capacity: 5~80t
    • Span: 10.5~45m
    • Lifting Height: 6~15 m
    • Working Grade: A5
    • Power Supply: 3-Phase AC, 50 HZ, 380V
    • Applications: Most workshop such as steel mill, smelter, foundry, steel structure plant, machinery factory,car production, aircraft manufacturing, aerospace engineering, paper mill, glass factory, nuclear industry, power plant, electrolytic aluminum, hot galvanizing, etc.

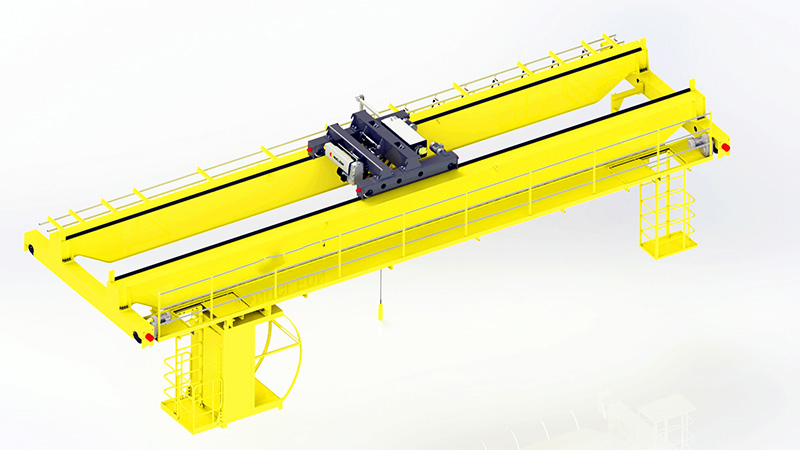

    Description of NLH European Style Double Girder Overhead Crane
    Nucleon NLH double girder overhead cranes adopt FEM/DIN standards, feature compact design, low headroom to increase the effective work space and optimize space utilization, safe working load up to 80 ton.
    1. Steel structure optimization design to maximum rigidity and low loss.
    2. Low deadweight and small wheel load reduces plant construction cost.
    3. Small blind spot. Minimum approach dimensions thanks to compact travelling hoist design.
    4. Variable crane control to meet operation requirements: radio remote control, pendant control or cab control all available.
    5. Maintenance platform on one side for easy maintenance use.

    Technical specification:

    • Technical Data of NLH European Style Double Girder Overhead Crane
    Capacity (t) Span (m) lifting height
    (m)    		 working class Lifting speed
    (m/min)    		 trolley speed
    (m/min)    		 crane trolley
    (m/min)    		 Max wheel load
    (kN)
    5 10.5 6    9   12 A5 0.66/4 0.8/5
    1.0/6.3 1.3/8 1.6/10    		 2.0-20  3.0-30 3.0- 30
    4.0- 40    		 35.8
    13.5 38.6
    16.5 42.4
    19.5 45.6
    22.5 50.8
    25.5 57.8
    28.5 64.3
    31.5 69.8
    10 10.5 6    9   12 A5 0.66/4.0
    0.8/5 1.0/6.3 1.3/8    		 2.0-20  3.0-30 3.0- 30
    4.0- 40    		 60.5
    13.5 64.5
    16.5 69
    19.5 76.3
    22.5 80.7
    25.5 85.9
    28.5 92.6
    31.5 100.5
    16 10.5 6    9    12 A5 053/3.4
    0.66/4  0.8/5    		 2.0-20  3.0-30 3.0- 30
    4.0- 40    		 93
    13.5 99.7
    16.5 106.8
    19.5 114.4
    22.5 120.8
    25.5 128.5
    28.5 136.1
    31.5 144.3
    20 10.5 6    9   12 A5 053/3.4
    0.66/4 1.2/4.95    		 2.0-20  3.0-30 3.0- 30
    4.0- 40    		 112
    13.5 120
    16.5 127
    19.5 133.4
    22.5 140.2
    25.5 74.6
    28.5 78.5
    31.5 83.4
