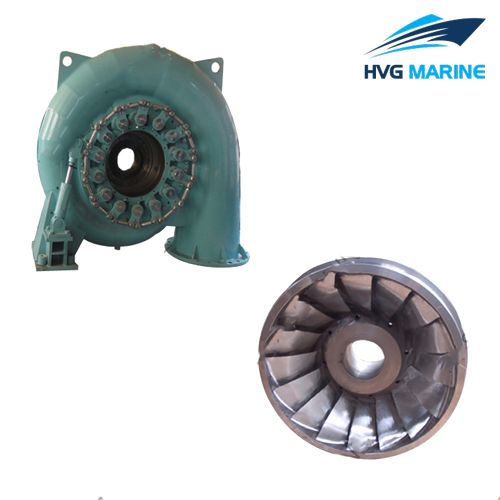

HVG OTHER INDUSTRIAL EQUIPMENT 0107: 320kw francis turbine

Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by HVG Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, vertical and horizontal, are widely used in hydropower stations. After several years’ research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.

Different kinds of horizontal francis turbine can be provided with runner diameter from 0.5 to 1m, covering a water head from 15 to 150m.

Technical specification:

This is technical parameters of 320kw horizontal francis turbine unit with runner diameter 0.5m.

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
24	1.78	350	750	320	400	93	Φ800 Butterfly Valve
26	1.59	347	750	320	400	93	Φ800 Butterfly Valve
27	1.62	370	1000	320	400	93	Φ800 Butterfly Valve
30	1.33	348	750	320	400	91	Φ800 Butterfly Valve
36	1.15	350	750	320	400	93	Φ600 Butterfly Valve
38	1.07	352	750	320	400	93	Φ500 Butterfly Valve
45	0.91	345	1000	320	400	93	Φ600 Butterfly Valve
58	0.70	358	1000	320	400	93	Φ600 Butterfly Valve
