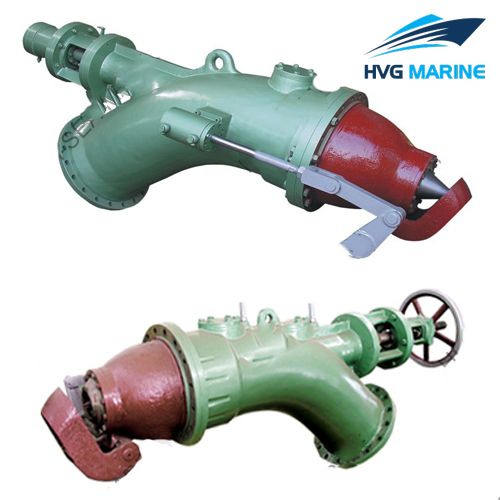

HVG OTHER INDUSTRIAL EQUIPMENT 0084: Pelton Turbine Nozzle
- HVG Marine are specialized in producing all kinds of hydropower equipments, including Francis Turbine, Pelton Turbine, Kaplan Turbine, Tubular Turbine and runners, hydropower generators and auxiliary equipments, such as inlet valve, governor, excitation system, oil pressure supply system, pressure-regulator valve and cast-steel pedestal body.
- Turbines produced by HVG Marine are in compact structure and high efficiency with head from 2~1200m, runner diameter from 30~700cm and capacity from 55~1000000KW. And also we can produce according to your requirements.
- All kinds of pelton turbines can be provided with single nozzle, two nozzles or four nozzles.
- This is technical parameters of 3200KW pelton turbine with twin nozzles and runner diameter 1.1m.
| Hydraulic Turbine | Turbine Generator | Valve | ||||||
| Jet Diameter(m) | Design Head(m) | Design Flow(m3/s) | Output(KW) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Model |
| 0.09 | 386 | 1.02 | 3404 | 750 | 3200 | 6300 | 95 | Φ500 Gate Valve |
| 0.11 | 304 | 1.36 | 3447 | 600 | 3200 | 6300 | 95 | Φ600 Gate Valve |
| 0.125 | 265 | 1.55 | 2650 | 500 | 3200 | 6300 | 95 | Φ700 Gate Valve |
