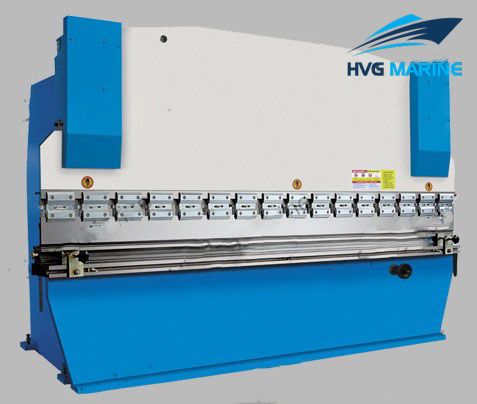

    HVG OTHER INDUSTRIAL EQUIPMENT 0066: 40*2500 Hydraulic Press Brake Machine

    • Whole steel welded structure, with VSR eliminate internal stress, with high strength and good rigidity.
    • Hydraulic double cylinder on the transmission, mechanical block, twisting axis synchronization, and reliable operation and high precision.
    • After the block away and slide stroke with electric adjustment and manual fine-tuning mode, and with a digital display device, easy to use shortcuts.
    • On the mold with a deflection compensation device, more than 250 tons and the length of 4000mm tool deflection compensation under the body can use.

    Technical specification:

    • Main Parameters:

    1

    Nominal Pressure

    400

    KN

    2

    Worktable Length

    2500

    mm

    3

    Column Distance

    2000

    mm

    4

    Throat Depth

    150

    mm

    5

    Ram Stroke

    100

    mm

    6

    Open Height

    315

    mm

    7

    Adjustment of Ram Stroke

    60

    mm

    8

    Approach Speed

    80

    mm/s

    Working Speed

    14

    mm/s

    Return Speed

    80

    mm/s

    9

    		 Axial Plunger Pump

    Model

    		 10MCY14-1B

    Flow

    10

    L/min

    Pressure

    31.5

    Mpa

    10

    Main Motor

    Model

    		 Y112M-4

    Power

    4.0

    KW

    Speed

    1440

    r/min

    11

    Size

    L

    2050

    mm

    W

    1380

    mm

    H

    2100

    mm
