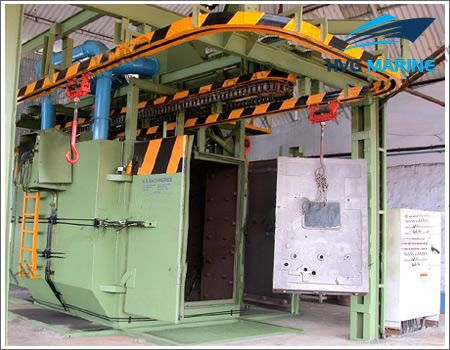

HVG OTHER INDUSTRIAL EQUIPMENT 0062: Hook Type Shot Blasting Device
Hook type shot blasting device is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other spare parts. It is widely used in foundry, forging, mechanical and steel industry.
|
Model |
Size of Workpiece Cleaned |
Carrying Weight of Single Hook |
Capacity of Shot -blasting |
Lifting Capacity of Hoist |
Separating Capacity of Separator |
Ventilation Capacity |
Power (excluding dedusting) |
Size |
|
(mm) |
(kg) |
(kg/min) |
(t/h) |
(t/h) |
(m3/h) |
(kw) |
(mm) |
|
|
Q376 |
Φ600*1100 |
500 |
2*120 |
15 |
15 |
5000 |
19 |
4429*2850*3443 |
|
Q378 |
Φ800*1500 |
1000 |
2*200 |
22 |
22 |
8000 |
32.5 |
4325*2660*5009 |
|
Q3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
36.55 |
5047*3850*5156 |
|
QD3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
39.65 |
5844*2742*5716 |
|
Q3720 |
Φ1400*2300 |
2000 |
3*250 |
45 |
45 |
15000 |
61.27 |
6110*3599*7842 |
|
Q3730 |
Φ1600*2300 |
3000 |
3*250 |
45 |
45 |
15000 |
64.4 |
7085*4650*8652 |
|
Q3750 |
Φ1800*2500 |
5000 |
4*250 |
60 |
60 |
18000 |
78.4 |
7062*54608652 |
|
Q3780 |
Φ2000*3000 |
8000 |
4*250 |
60 |
60 |
20000 |
81.5 |
8050*6400*8526 |
